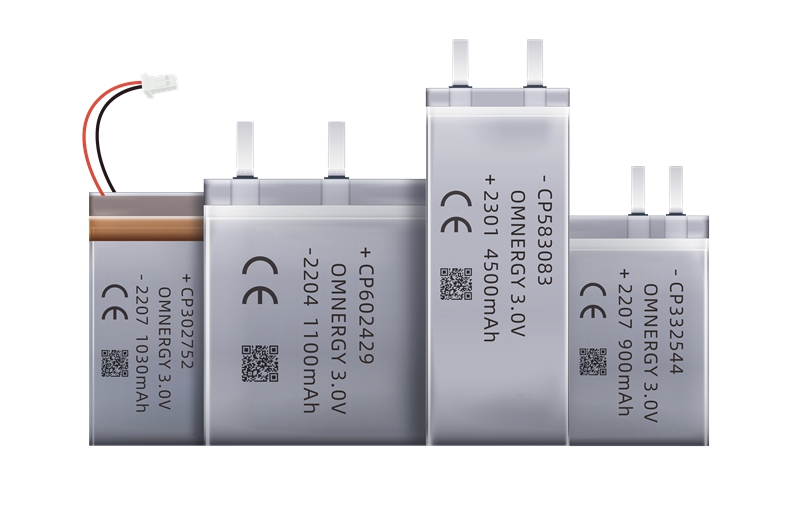

CP501728 LiMnO₂ Lithium Pouch Cell
- Omnergy
- 中国
- 15 days
- 750 million per year
The CP501728 is a 3V disposable lithium-manganese soft-pack battery, featuring an ultra-thin and flexible design, high energy density, leak-proof properties, and a long lifespan. It provides a reliable power solution for electronic shelf labels (ESL), IoT sensors, smart wearables, and small consumer electronic devices. Customization options are available, and it is fully certified.
The CP501728 is a 3V non-rechargeable lithium manganese dioxide (LiMnO₂) pouch battery, utilizing advanced lamination packaging technology to achieve high capacity output in an ultra-thin structure. This product boasts excellent safety and stability, preventing leakage and swelling, and is widely applicable to various low-power electronic devices with stringent space, weight, and reliability requirements.
Technical Parameters
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminating Structure | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminating Structure | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminating Structure | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminating Structure | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Winding Structure | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminating Structure | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Winding Structure | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Winding Structure | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminating Structure | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Winding Structure | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Winding Structure | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Winding Structure | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Winding Structure | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Winding Structure | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Winding Structure | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Winding Structure | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Winding Structure | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Winding Structure | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Winding Structure | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Winding Structure | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Winding Structure | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Winding Structure | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Winding Structure | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Winding Structure | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Winding Structure | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Winding Structure | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Winding Structure | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Winding Structure | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Winding Structure | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Winding Structure | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Winding Structure | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Winding Structure | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminating Structure | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Winding Structure | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Winding Structure | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Winding Structure | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Winding Structure | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Winding Structure | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Winding Structure | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Winding Structure | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Winding Structure | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Winding Structure | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Winding Structure | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Winding Structure | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Winding Structure | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Winding Structure | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Winding Structure | 50 |
Key Features
Standard 3V voltage: Provides a stable and long-lasting discharge platform.
High energy density: Outstanding capacity in a compact size, resulting in longer battery life.
Ultra-thin and flexible design: Only approximately 5.0mm thick, suitable for confined or irregularly shaped spaces.
Excellent safety performance: Solid-state electrolyte design effectively prevents leakage and swelling.
Wide operating temperature range: Suitable for -20℃ to +60℃ environments (wider temperature ranges available upon request).
Low self-discharge rate: Annual self-discharge rate <1%, with a storage life of up to 10 years at room temperature.
Environmentally compliant: Complies with RoHS, Reach, and other environmental directives, with optional UL/UN38.3 certification.
Typical Application Scenarios
Electronic Shelf Labels (ESL): Provides maintenance-free power for wireless electronic price tags for over 5 years.
Internet of Things (IoT) devices: Including temperature and humidity sensors, asset trackers, smart agriculture sensors, etc.
Smart medical/wearable devices: Disposable medical patches, body temperature monitoring tags, smart cards, etc.
Memory backup and Real-Time Clock (RTC) power supply: Replaces traditional button batteries for industrial control motherboards and smart meters.
Small consumer electronics: Bluetooth trackers, RFID tags, portable detectors, etc.
Why choose CP501728?
Extremely high space utilization: The ultra-thin pouch form factor maximizes the use of internal space in devices, enhancing product design flexibility.
Safe and reliable: Comprehensive control from cell materials to packaging processes ensures no leakage or swelling risks during long-term use.
Supports deep customization: Capacity, size, lead wire configuration, and certification options can be adjusted according to customer needs.
One-stop power solution: Provides technical support from battery selection and structural adaptation to mass delivery.
