CP502425 3V 600mAh Primary Lithium Manganese Pouch Battery: Compact Square Profile for High-Drain IoT Hardware
- Omnergy
- 中国
- 15 days
- 1000 million per year
Bulk buy CP502425 3V 600mAh primary lithium pouch cells. Ultra-thin 5.2*25*26mm form factor, ≤2% self-discharge. Perfect for GPS tracking, active RFID, and smart medical devices.
CP502425 3V 600mAh Primary Lithium Manganese Pouch Battery: Compact Square Profile for High-Drain IoT Hardware
When your product design requires a high-capacity energy reservoir but traditional cylindrical or coin cells compromise your ultra-low-profile enclosure, the mechanical layout becomes a bottleneck. The CP502425 3V 600mAh Primary Lithium Manganese Dioxide LiMnO2 Pouch Battery resolves this challenge with an optimized square form factor.
Featuring a thickness of just 5.2mm and a balanced footprint, this ultra-lightweight (4.8g) soft-pack battery provides a substantial 600mAh capacity. It is engineered to deliver sustained continuous current and stable pulse discharge to high-performance, space-constrained electronic systems.
Core Technical Specifications of CP502425 3V 600mAh
| Parameter | Technical Specification |
| Model Number | CP502425 |
| Electrochemical System | Lithium Manganese Dioxide LiMnO2 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 600mAh |
| Dimensions (Max) | 5.2*25*26mm |
| Weight | Approx. 4.8g |
| Operating Temperature | -20°C to +60°C |
| Annual Self-Discharge Rate | ≤2% per year (at room temperature) |
| Structure | Flexible Aluminum-Plastic Laminated Soft Pack |

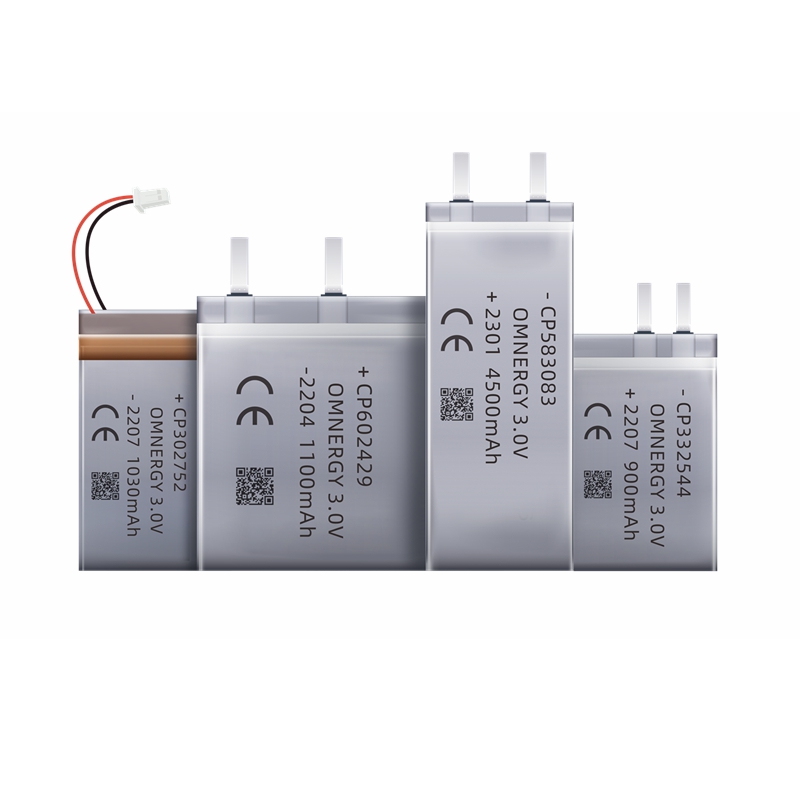

Full Range of Primary Lithium Manganese Pouch Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Key Advantages for Hardware Designers & Procurement Managers
1. Optimized Square Footprint for Component Layouts
The geometry of the CP502425 is explicitly designed to sit flush alongside square PCBs, internal antennas, and sensor arrays. By eliminating the rigid metal can used in traditional cells, this pouch cell maximizes internal volume usage, allowing you to design thinner, more ergonomic end products.
2. Long-Term Reliability: Annual Self-Discharge
IoT devices, tracking tags, and backup systems often face prolonged shelf storage or standby phases. The highly stable LiMnO2 chemistry minimizes chemical passivation, ensuring the battery loses less than 2% of its capacity per year. This guarantees an operational readiness life of up to 10 years depending on the device's discharge profile.
3. Environmental Adaptability (-20°C to +60°C)
From cold-chain transport logistics to high-temperature industrial environments, the CP502425 maintains a flat, dependable voltage discharge curve, preventing sudden device dropouts under volatile thermal conditions.
Targeted Industrial Application Frameworks
The specific capacity-to-weight ratio of the CP502425 makes it a preferred power source for specialized commercial and B2B deployments:
Asset Tracking & Logistics: Advanced GPS tracking and positioning systems, container location beacons, and supply-chain monitoring devices.
Smart Cards & Fintech: Biometric payment cards, dynamic CVV security tokens, and high-security access badges.
IoT & Wireless Telemetry: High-range active RFID tags, localized environmental sensor networks, and commercial wireless remote controllers.
Medical Device Engineering: Wearable patient monitors, portable smart diagnostic instruments, and compact medical machinery.
Infrastructure & Security: Industrial instrument power supplies, smart utility meters (), wireless security alarms, and environmental sensors.
Non-Volatile Memory Backup: Vital backup power supplies for components to prevent data corruption during primary power failure.
B2B Wholesale & Global Supply Chain Support
We specialize in high-volume manufacturing and direct supply chain integration for OEMs, ODMs, and industrial buyers worldwide.
Wholesale Operational Scale: Exclusively catering to bulk industrial orders and long-term contract manufacturing.
Custom Engineering Options: Available with customized tab alignments, custom lead wire lengths, specified connectors, or multi-cell battery pack configurations.
Global Shipping Compliance: Full documentation packages available, including UN38.3, MSDS, and UL safety certifications, ensuring trouble-free international customs clearance and cross-border logistics.
Request Technical Datasheets & Prototyping Samples
Do you need specific pulse-discharge simulation graphs, 3D CAD models ( files), or sample batches for your engineering team's pilot testing?
[Contact Our Technical Engineering Department] today to explore volume pricing structures and secure your design evaluation samples.
