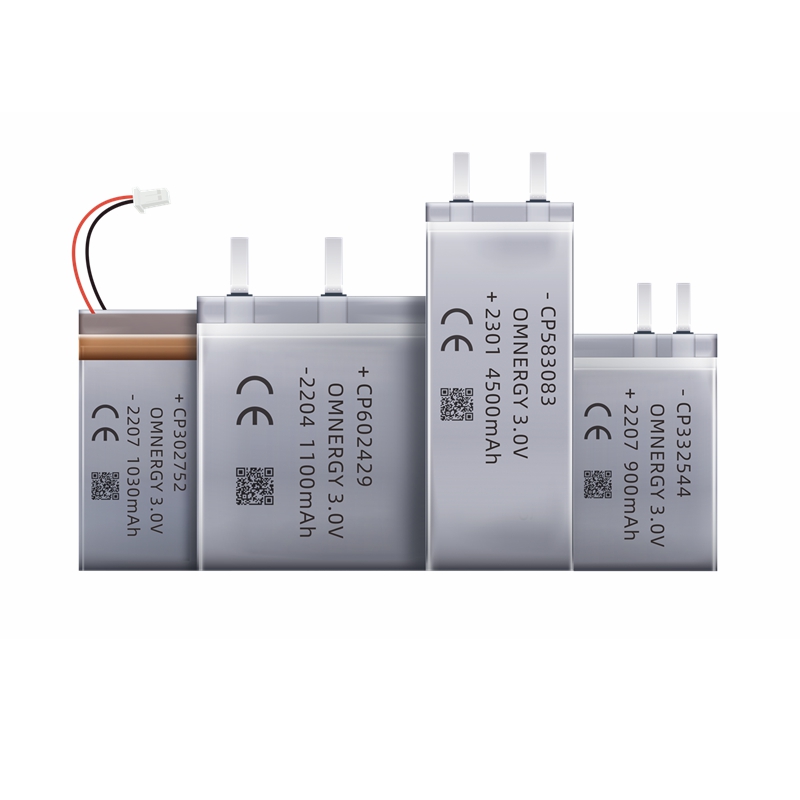

CP583083 LiMnO₂ Lithium Pouch Cell
- Omnergy
- 中国
- 15 days
- 1000 million per year
CP583083 3V Disposable Lithium Manganese Soft-Pack Battery: Large-Capacity Square Package, Continuously Empowering High-Performance Devices with Long Battery Life
Technical Parameters
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminating Structure | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminating Structure | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminating Structure | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminating Structure | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Winding Structure | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminating Structure | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Winding Structure | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Winding Structure | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminating Structure | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Winding Structure | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Winding Structure | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Winding Structure | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Winding Structure | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Winding Structure | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Winding Structure | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Winding Structure | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Winding Structure | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Winding Structure | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Winding Structure | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Winding Structure | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Winding Structure | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Winding Structure | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Winding Structure | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Winding Structure | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Winding Structure | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Winding Structure | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Winding Structure | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Winding Structure | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Winding Structure | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Winding Structure | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Winding Structure | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Winding Structure | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminating Structure | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Winding Structure | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Winding Structure | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Winding Structure | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Winding Structure | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Winding Structure | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Winding Structure | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Winding Structure | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Winding Structure | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Winding Structure | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Winding Structure | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Winding Structure | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Winding Structure | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Winding Structure | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Winding Structure | 50 |
When smart devices require compact integration of high-capacity power, traditional solutions often face trade-offs between space and performance. The CP583083 3V disposable lithium manganese soft-pack battery breaks this limitation with its large-capacity square design of 5.8×30×83mm. It maximizes energy density within a classic square size, providing durable, stable, and maintenance-free core power for industrial and consumer devices with demanding requirements for battery life, power, and reliability.
Square Capacity, a Delicate Balance of Performance and Space
The CP583083 adopts a mature square soft-pack architecture, with precisely optimized internal stacking, achieving significantly increased capacity within a compact volume. Its regular geometric shape perfectly fits standard battery compartments or rectangular spaces inside devices, especially suitable for portable medical devices, smart security terminals, handheld industrial instruments, and other products requiring continuous high-intensity operation, completely solving battery life issues.
Powerful Performance, Designed for High-Performance Applications
Based on the in-depth optimization of the lithium manganese (Li-MnO2) system, the CP583083 exhibits superior characteristics beyond standard specifications:
High-Capacity Design: Optimized cell design provides greater effective energy reserves, significantly extending the device's single-use operating time.
Stable Power Output: Supports pulse discharge, providing a stable and reliable 3V voltage platform, ensuring stable operation of core modules under high load.
Ultra-Long Shelf Life: Extremely low self-discharge rate (annual self-discharge rate <1%), ensuring minimal energy loss during storage and standby, supporting a device lifespan of over 10 years.
Stable Operation in a Wide Temperature Range: Maintains high performance across a wide temperature range of -20℃ to +60℃, adapting to diverse indoor and outdoor working environments.
Safe and Robust, Meeting Demanding Applications
Using high-strength metal composite film packaging and built-in multiple safety protection designs, it possesses excellent impact resistance, vibration resistance, and high-level sealing, eliminating the risk of leakage. The product complies with international environmental and safety standards such as RoHS, and is suitable for critical fields requiring extremely high safety and reliability, such as medical, security, and data acquisition.
Typical Application Scenarios
Industrial and Security Fields: Handheld data acquisition terminals, portable testing instruments, security alarm systems, GPS trackers
Medical and Healthcare Equipment: Portable monitors, electronic infusion pumps, handheld diagnostic devices
High-End Consumer Electronics: Smart home control systems, professional-grade remote control devices, high-end electronic stationery
Internet of Things and Backup Systems: Remote monitoring terminals, LoRa/NB-IoT gateways, critical data backup power supplies
Defining Reliable Energy Standards
Choosing the CP583083 means choosing a trustworthy energy foundation for your equipment. It's not just a power supply; it's a critical component that ensures stable operation of your equipment at critical moments, reduces maintenance costs, and improves user satisfaction, helping your product build a lasting reputation for reliability in the market.
