Power your slim IoT designs with the CP601967 3V 1800mAh lithium soft pack battery. Ultra-thin (6mm), lightweight (13.5g), and optimized for GPS tracking, active RFID, and smart medical devices.
CP601967 3V 1800mAh: The Ultra-Thin Lithium Soft Pack Powerhouse Driving the IoT Revolution
As smart devices shrink, traditional cylindrical batteries are fast becoming design bottlenecks. Engineers are no longer asking how to fit their circuit boards around a bulky battery; they are looking for power that adapts to their product’s form factor.
The CP601967 3V 1800mAh Primary Lithium Manganese Dioxide LiMnO2 Soft Pack Battery is the answer to modern, low-profile product design. Combining a paper-thin 6.0mm profile with a robust 1800mAh capacity, this flexible pouch cell delivers high energy density and long-term reliability where traditional batteries cannot fit.
Technical Specifications of CP601967 3V 1800mAh
| Parameter | Specification |
| Model | CP601967 |
| Chemical System | Lithium Manganese Dioxide LiMnO2 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 1800mAh |
| Dimensions | 6.0 mm × 19 mm × 65 mm (T × W × L) |
| Weight | Approx. 13.5g |
| Operating Temperature | -40°C to +60°C |
| Self-Discharge Rate | ≤ 2% per year (at room temperature) |

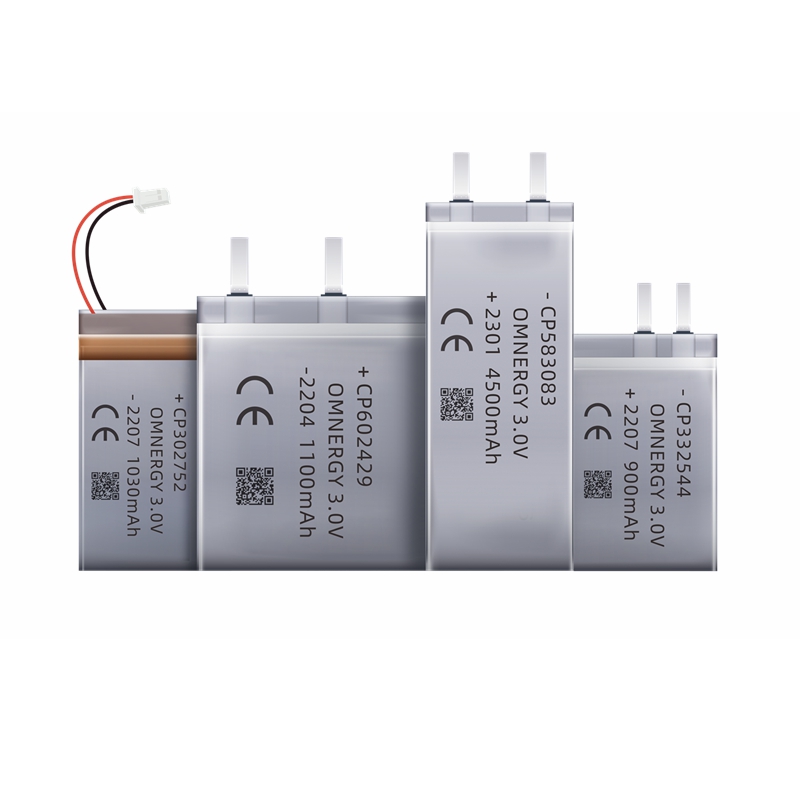

Full Range of CP Series Lithium Soft Pack Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Core Advantages: Why Engineers Specify the CP601967
1. The Slim Profile Advantage
At just 6.0mm thick, the CP601967 frees up valuable internal space. Its flat, rectangular footprint fits smoothly into sleek casings, allowing industrial designers to build more aesthetic, compact, and ergonomic enclosures.
2. High Energy Density, Minimal Weight
Weighing only 13.5g, this cell packs a massive 1800mAh of energy. By maximizing the active material within a lightweight aluminum foil pouch, it achieves an excellent energy-to-weight ratio—perfect for wearables and handheld devices where every gram counts.
3. Decade-Long Shelf Life (≤ 2% Self-Discharge/Year)
Featuring highly stable chemistry, the CP601967 has a self-discharge rate of less than 2% annually. It ensures your product remains fully powered even after long periods of transit, warehouse storage, or emergency standby use.
4. Rugged Thermal Tolerance
Built to withstand outdoor deployments and harsh industrial environments, the cell operates reliably across a temperature range of -40°C to +60°C, maintaining constant voltage output and high pulse discharge capability.
Targeted Industry Applications
The CP601967 is specifically engineered to meet the unique power profiles of high-demand modern electronics:
IoT Tracking & Smart Security
GPS Tracking & Asset Location Systems: Long-lasting energy backup and primary power for container trackers, fleet management units, and high-value logistics tags.
Active RFID: Reliable pulse current delivery for long-range asset tracking and warehouse inventory management tags.
Security & Alarm Systems: Dependable standby power for wireless door/window sensors, smart glass-break detectors, and low-profile home security hubs.
Medical & Wearable Electronics
Smart Medical Machinery: Non-rechargeable power for portable patient monitors, diagnostic wear, and critical medical patches where reliability is non-negotiable.
Smart Bank Cards: The perfect thickness for integration into ultra-thin visual display cards, cold storage cryptocurrency wallets, and OTP security cards.
Industrial & Utility Infrastructure
Industrial Utility Meters: Maintenance-free power for smart flow meters, gas sensors, and pressure transmitters that require long service life in the field.
Portable Smart Instruments: High-capacity power for handheld field calibrators, environmental testing equipment, and industrial gas detectors.
Memory Backup Support (SRAM/RTC): Essential bridge power for real-time clocks and non-volatile memory in servers, smart grid nodes, and automation controllers during primary power outages.
Wireless Remote Controllers: High-energy cell for heavy-duty industrial cranes, smart home control panels, and automated gate controllers.
Get a Custom Power Solution
Do you have specific connection, wire length, or safety requirements? We provide tailor-made battery assembly options for the CP601967, including:
Custom Wire Leads & Connectors (JST, Molex, Hirose, etc.)
Integrated Protection Circuit Modules (PCM) to guard against over-discharge
Multi-cell battery packs in series or parallel configurations
Ready to optimize your device’s power system? Contact our B2B engineering team today for technical datasheets, samples, and volume pricing.
