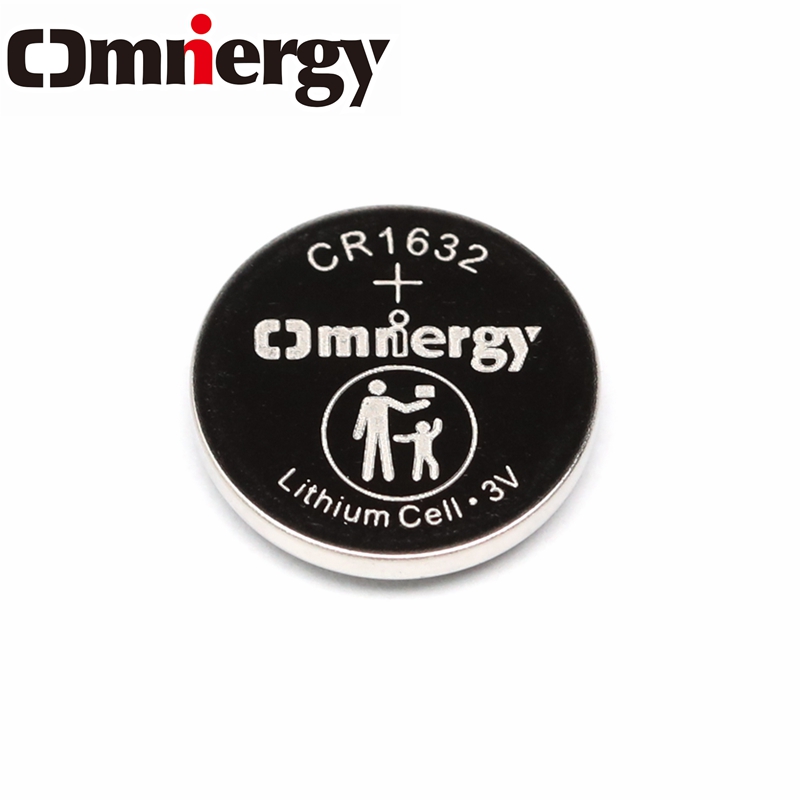

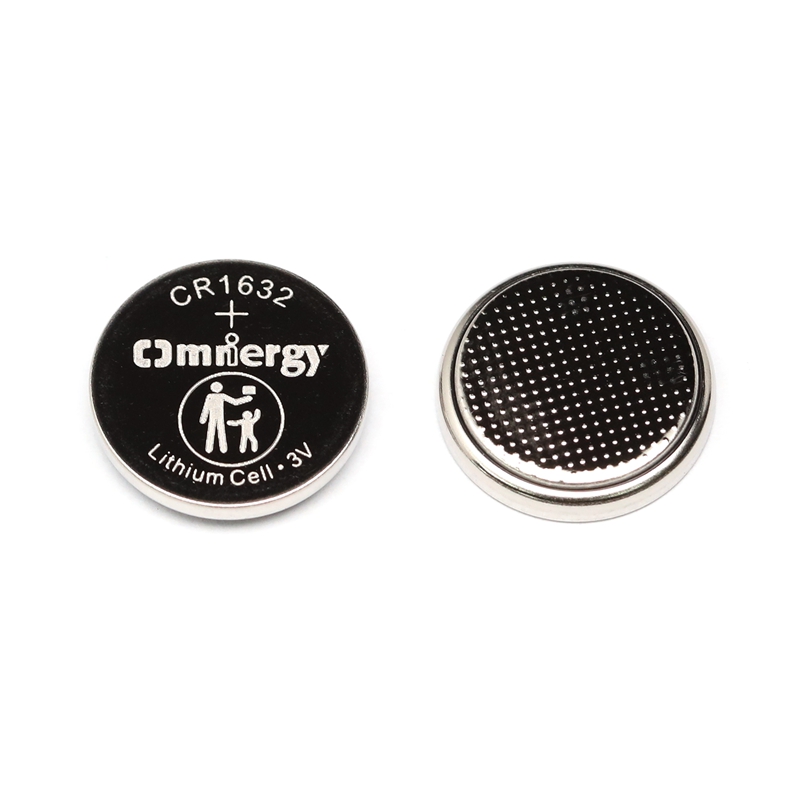

CR1632T Lithium Button Cell
CR1632T Lithium Button Cell
- Omnergy
- China
- 15 days
- 750 million per year
High-temperature resistance
Excellent discharge stability
High voltage, high energy density
Superior strorage characteristics
Specification
| Model | Nominal Voltage M | Nominal Capacily (mAh) | Nominal Curent (mA) | Maximum Continuous Curent (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Weight (g) |
| CR1216T | 3 | 25 | 0.1 | 2 | 5 | Φ2.5X2.5 | 0.7 |
| CR1220T | 3 | 38 | 0.1 | 2 | 5 | Φ12.5X2.0 | 0.8 |
| CR1225T | 3 | 50 | 0.1 | 2 | 5 | Φ2.5X2.5 | 0.9 |
| CR1616T | 3 | 50 | 0.1 | 3 | 8 | Φ16.0X1.6 | 1.2 |
| CR1620T | 3 | 70 | 0.1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632T | 3 | 120 | 0.2 | 3 | 8 | Φ16.0X3.2 | 2.0 |
| CR2016T | 3 | 80 | 0.1 | 5 | 15 | Φ20.0X1.6 | 2.0 |
| CR2020T | 3 | 130 | 0.2 | 5 | 15 | Φ20.0X2.0 | 2.3 |
| CR2025T | 3 | 150 | 0.2 | 5 | 15 | Φ20.0X2.5 | 2.6 |
| CR2032T | 3 | 220 | 0.2 | 5 | 15 | Φ20.0X3.2 | 3.2 |
| CR2320T | 3 | 130 | 0.2 | 6 | 20 | Φ23.0X2.0 | 3.0 |
| CR2325T | 3 | 1 90 | 0.2 | 6 | 20 | Φ23.0X2.5 | 3.3 |
| CR2330T | 3 | 260 | 0.2 | 6 | 20 | Φ23.0X3.0 | 4.0 |
| CR2335T | 3 | 300 | 0.2 | 6 | 20 | Φ23.0X3.0 | 4.3 |
| CR2354T | 3 | 520 | 0.4 | 6 | 20 | Φ23.0X5.4 | 6.9 |
| CR2430T | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2450T | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477T | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X5.0 | 10.5 |
| CR3032T | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832T | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11.0 |
Characteristic of CR1632T Lithium Button Cell
High-temperature resistance
Excellent discharge stability
High voltage, high energy density
Superior strorage characteristics
Application of CR1632T Lithium Button Cell
Industry Control
Sever
Outdoor Monitoring
