Omnergy BR3032 3V 500mAh Lithium Coin Cell
- Omnergy
- China
- 15 days
- 750 million per year
Maximize runtime with the Omnergy BR3032 3V 500mAh Lithium Carbon Monofluoride battery. Stable -40°C to +85°C backup for servers, POS, and security grids.

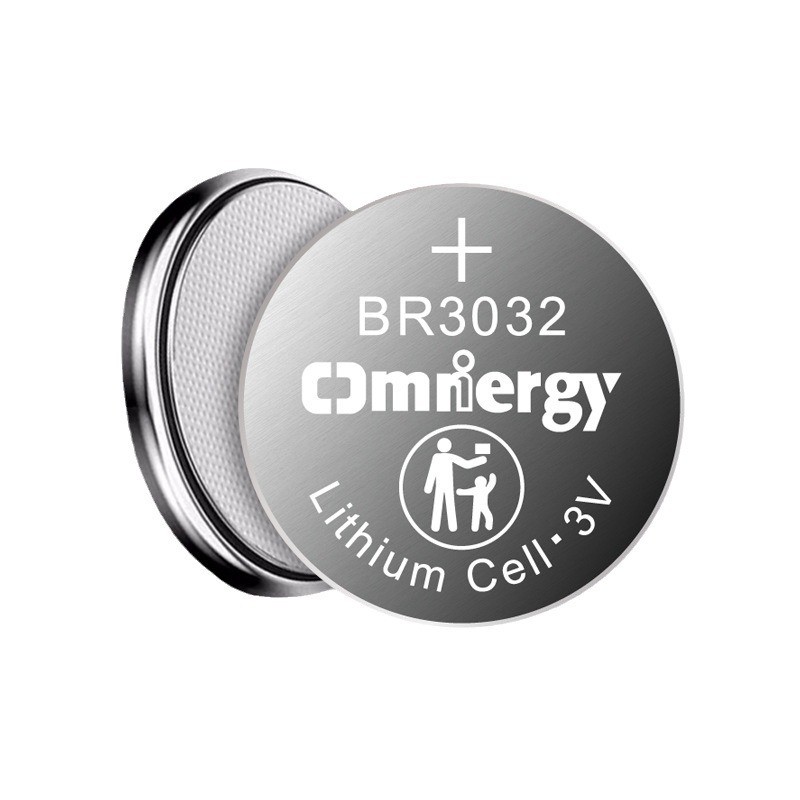

BR3032 3V 500mAh Lithium Coin Cell: Wide Architecture, Deep Power Reserves, Flat Profile
When your hardware demands heavy-duty standby energy but faces tight vertical clearance, standard stacked or thick button cells will not fit the enclosure. The Omnergy BR3032 3V Lithium Carbon Monofluoride (Li-CFx) Coin Cell resolves this engineering bottleneck.
By spreading a robust 500mAh capacity across an expanded 30.0mm horizontal footprint, the BR3032 maintains a slim line of just 3.2mm. It is the ultimate "install-and-forget" standby power solution for low-profile enterprise hardware, sleek retail electronics, and ruggedized security systems that refuse to compromise on device lifespan.
Technical Parameters of BR3032 3V 500mAh Lithium Coin Cell
| Product Name | BR3032 lithium button cell |
| Nominal Discharge current | 0.4mA |
| Nominal Voltage | 3V |
| Nominal Capacity | 500(mAh) |
| Continuous Current(Max) | 8mA |
| Maximum pulse current | 20mA |
| Operating temperature | -40℃~85℃ |
| Weight | 5.5（g） |
| UL Recognition | MH29853 |
| Storage temperature range | 0℃-30℃ |
| Storage humidity range | 35%~75% |
Full BR Lithium Button Cell Batteries
| Model | Nominal Voltage（V） | Nominal Current (mA) | Nominal Capacity (mAh) | Maximum Continuous Current (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Working temperature（℃） | Weight（g） |
| BR1225 | 3 | 0.1 | 45 | 1 | 3 | φ12.5×2.5 | -40~+85 | 0.8 |
| BR1632 | 3 | 0.2 | 120 | 2 | 5 | φ16.0×3.2 | -40~+85 | 1.8 |
| BR2016 | 3 | 0.1 | 70 | 2 | 5 | φ20.0×1.6 | -40~+85 | 1.8 |
| BR2025 | 3 | 0.2 | 130 | 3 | 6 | φ20.0×2.5 | -40~+85 | 2.5 |
| BR2032 | 3 | 0.2 | 200 | 3 | 6 | φ20.0×3.2 | -40~+85 | 3 |
| BR2325 | 3 | 0.2 | 170 | 4 | 10 | φ23.0×2.5 | -40~+85 | 3.2 |
| BR2330 | 3 | 0.2 | 240 | 4 | 10 | φ23.0×3.0 | -40~+85 | 3.5 |
| BR2335 | 3 | 0.2 | 280 | 4 | 10 | φ23.0×3.5 | -40~+85 | 4.3 |
| BR2354 | 3 | 0.4 | 420 | 4 | 10 | φ23.0×5.4 | -40~+85 | 6 |
| BR2430 | 3 | 0.2 | 230 | 5 | 15 | φ24.5×3.0 | -40~+85 | 4.2 |
| BR2450 | 3 | 0.4 | 550 | 5 | 15 | φ24.5×5.0 | -40~+85 | 6 |
| BR2477 | 3 | 0.6 | 900 | 5 | 15 | φ24.5×7.7 | -40~+85 | 9.6 |
| BR3032 | 3 | 0.4 | 500 | 8 | 20 | φ30.0×3.2 | -40~+85 | 5.5 |
Core Advantages: Engineering the Horizontal Space
1. Geometric Optimization (Φ30.0 × 3.2mm)
Why build taller when you can build smarter? The BR3032 leverages a wide surface area to pack double the capacity of a standard 2032 cell without adding a single millimeter of height. It is tailored perfectly for high-density server blades, compact mobile terminal payment systems, and flat sensor housings.
2. Flawless Extreme Temperature Performance (-40°C to +85°C)
Industrial computing and outdoor telemetry must endure severe environments. Our advanced Li-CFx chemical structure ensures a completely stable, leak-free, and fade-free voltage output whether operating in freezing sub-zero outdoor security grids at -40°C or baking inside heavily taxed enterprise server racks at +85°C.
3. Decade-Defying Standby Lifespan (<2% Annual Self-Discharge)
Frequent field maintenance drains profitability. Rigorously engineered for long-term B2B infrastructure deployment, the Omnergy BR3032 boasts a self-discharge rate of less than 2% per year. Your system configuration, transaction logs, and Real-Time Clocks (RTC) stay protected in standby mode for more than 10 years.
Target Applications: Powering Slimline B2B Ecosystems
The unique 500mAh profile of the BR3032 makes it the premier choice for sleek, mission-critical electronics:
Enterprise Servers & 1U Datacenter Blades: Fits seamlessly into ultra-thin server chassis to provide high-capacity CMOS and RTC backup, ensuring internal clocks and system logs survive prolonged power loss.
Point of Sale (POS) Terminals & ATMs: Safely secures offline transactional data, security logs, and financial encryption keys in low-profile smart registers and payment gateways.
Commercial Security & Smart Access Control: Delivers relentless, years-long power for slim electronic door locks, flat biometric scanners, and remote outdoor perimeter sensors.
Industrial Controls & Medical Tech: Acts as the ultra-reliable memory backup infrastructure for Programmable Logic Controllers (PLCs) and medical monitoring systems that require high energy density within a flat design.
Engineering Insight: Spreading the Power Footprint
Why choose a 30mm diameter cell over a thicker 24.5mm variant?
The decision comes down to Z-Axis Constraints vs. Energy Demands. When a hardware design requires a substantial 500mAh reserve to guarantee a 10+ year lifespan, engineers often look to thick cells like the BR2450 (5.0mm) or BR2354 (5.4mm). However, if your PCB sits in a slim enclosure where every fraction of a millimeter in height counts, the BR3032 allows you to capture that exact same 500mAh capacity while cutting vertical thickness down to a mere 3.2mm.
Additionally, shifting from consumer CR (Lithium Manganese Dioxide) chemistry to Omnergy’s industrial BR-series (Li-CFx) provides a perfectly flat 3.0V discharge profile. This eliminates the gradual voltage decay typical of CR cells, ensuring sensitive microprocessors receive continuous, unfluctuating voltage until the cell is entirely spent, even under continuous 85°C operational heat.
The Omnergy Advantage: Scale, Precision, and Partnership
As a globally recognized "Invisible Champion" and "Little Giant" in the primary lithium micro-power sector, Omnergy brings elite manufacturing pedigree directly to your automated assembly line.

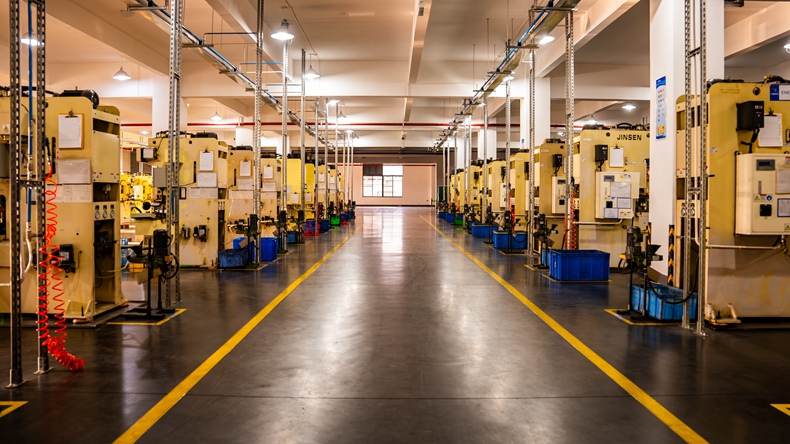

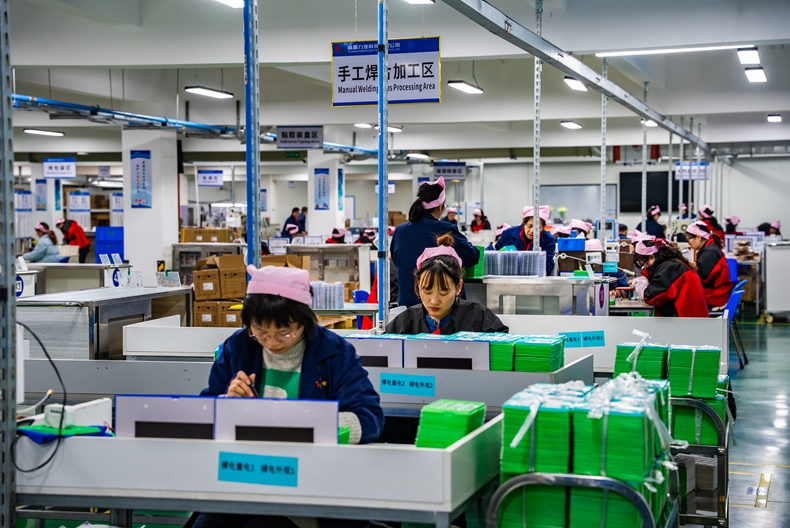

Our world-class R&D testing facility houses over 180 specialized testing instruments, guaranteeing that every batch delivers unyielding consistency. Operating under strict automotive-grade IATF16949 quality management systems, our highly automated manufacturing plants feature a massive monthly production capacity of 66 million units.
Whether your team requires bulk standard cells or custom battery packs with precision-welded solder tabs and pins tailored to your exact schematics, we are your definitive source factory partner.
