CP1003850 3V 5200mAh Primary Li-MnO2 Soft Pack Battery
- Omnergy
- 中国
- 15 days
- 1000 million per year
Engineered for IoT, GPS tracking, and active RFID. The 3V CP1003850 primary lithium pouch cell delivers 5200mAh capacity, -40°C to +60°C performance, and ≤2% annual self-discharge.
CP1003850 3V 5200mAh Primary Li-MnO2 Soft Pack Battery: Ultra-Thin, High-Density Power for Next-Gen B2B IoT Solutions
When standard cylindrical batteries represent unnecessary bulk and dynamic coin cells fail to meet your longevity demands, the CP1003850 3V 5200mAh Lithium Manganese Dioxide (Li-MnO2) Soft Pack Battery redefines what is possible. Specially engineered to live inside flat-profile industrial designs, this primary pouch cell provides the perfect intersection of physical slimness (10.0mm thickness) and high-energy longevity.
Whether you are designing advanced cold-chain asset trackers, micro-medical instrumentation, or smart utility meters that must operate unattended for over a decade, the CP1003850 ensures continuous, reliable, and safe operation under the toughest conditions.
Technical Specifications (Standard Model: CP1003850)
| Technical Parameter | Engineering Specification |
| Model Designation | CP1003850 |
| Chemical Structure | Lithium Manganese Dioxide LiMnO2 Soft Pack |
| Nominal Voltage | 3.0 V |
| Nominal Capacity | 5200 mAh (5.2 Ah) |
| Physical Dimensions | 10.0*38*50mm (Max Thickness: 10.5mm) |
| Nominal Weight | Approximately 35 g |
| Operating Temperature | -40°C to +60°C |
| Annual Self-Discharge | ≤ 2% per year |
| Packaging Material | Flexible Aluminum-Laminate Foil |

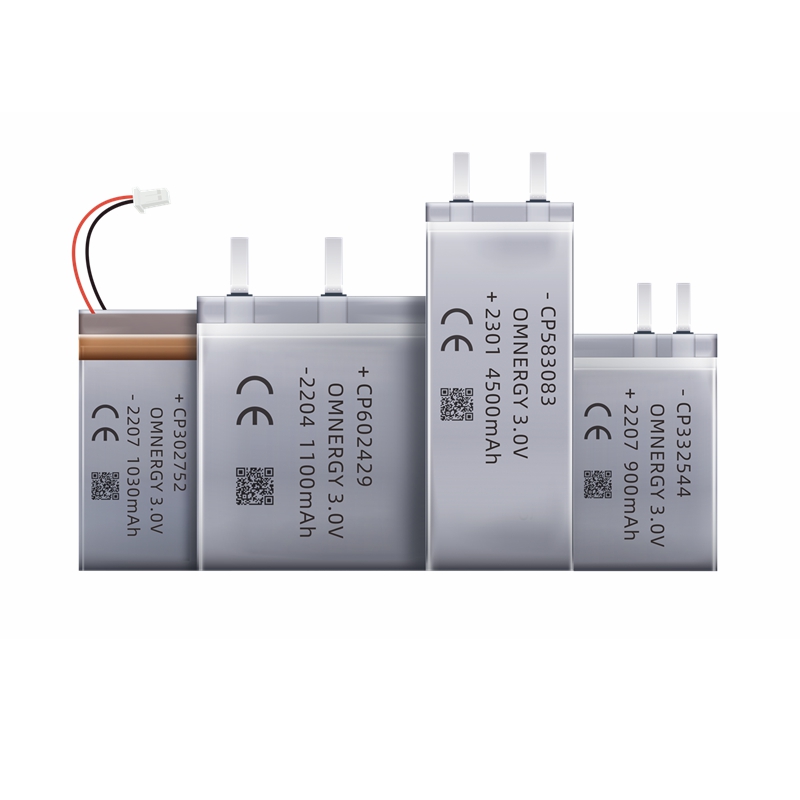

Full Range of Primary Li-MnO2 Soft Pack Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Why Engineers Specify the CP1003850: Core Advantages
1. Form-Fitting Design Freedom (Only 10mm Thick)
Standard batteries constrain product casing layouts. The CP1003850 utilizes a high-efficiency aluminum-laminate pouch wrapper instead of rigid metal cans. Weighing only 35g, its ultra-low profile allows designers to fit high-capacity power directly onto printed circuit boards, inside ultra-thin dynamic payment cards, or flat sensor mounts without creating bulk.
2. Thermal Resilience Built for Extreme Climates (-40℃~60℃)
From high-altitude asset tracking to subterranean industrial metering, this primary cell performs where others fail. Optimized with a proprietary low-viscosity electrolyte, the cell maintains robust ionic conductivity to avoid freezing under freezing alpine climates, while remaining physically and chemically stable in high-heat industrial environments.
3. Over 10 Years of Active Storage & Service Life
With an exceptionally low annual self-discharge rate of less than 2%, your devices can sit in storage or run on intermittent duty cycles for over a decade. This ensures peace of mind for backup power configurations, security arrays, and remote environmental telemetry.
4. Safe Expansion Over Violent Venting
In cases of extreme external abuse or electrical anomalies, standard cylindrical batteries can suffer explosive pressure build-ups. The flexible pouch packaging of the CP1003850 naturally expands to vent excess gases slowly, protecting your surrounding electronic components from catastrophic failure.
Key B2B Application Landscapes
The CP1003850 serves as the primary power backbone for high-demand, low-power-wide-area (LPWA) and industrial platforms:
GPS Tracking & Logistics Location Systems: Powers slim-profile maritime container trackers, asset locators, and dynamic fleet-management telemetry devices.
Active RFID & Smart Transponders: Sustains long-range industrial shipping tags requiring years of reliable standby power coupled with instant high-current transmission bursts.
Wireless Remote Controllers & Keyless Access: Fits into custom handheld industrial control systems and smart entry portals.
Medical Equipment & Wearable Diagnostics: Ideal for skin-worn physiological monitoring patches and portable medical analyzers requiring consistent, non-rechargeable power.
Security Alarms & Anti-Intrusion Sensors: Sustains home security hubs, smart smoke alarms, and secure window/door sensors for long maintenance-free lifespans.
Memory Backup & RTC Retention: Preserves critical register states and calibration profiles in industrial computers and automated PLCs.
Biometric & Bank Payment Cards: Ultra-thin geometry integrates directly into modern high-security multi-factor authentication banking and identity cards.
Industrial Metrology & Smart Meters: Ensures reliable, decade-long power for water meters, gas flow meters, and smart thermal sensors deployed in isolated environments.
Custom OEM & ODM Battery Engineering
No two PCB layouts are the same. We offer complete custom integration support for your volume orders:
Custom Terminations: Solder tabs, radial pins, wires, or specialized JST/Molex connectors designed for quick assembly.
Pack Configurations: Custom multi-cell arrays in series or parallel to scale voltages or overall capacity.
Global Certifications: Delivered with full compliance testing including UN38.3, UL1642, RoHS, and IEC60086-4 for seamless export and worldwide shipping.
Frequently Asked Questions
Q1: Can the CP1003850 primary soft pack battery be recharged?
A: No. The CP1003850 is a primary (non-rechargeable) Lithium Manganese Dioxide LiMnO2 chemistry. Trying to charge it can lead to safety hazards, leaking, or internal damage. For high-capacity rechargeable needs, contact our engineering team for Li-polymer alternatives.
Q2: Does the soft-pack design resist high-pulse loads like NB-IoT or LoRa?
A: Absolutely. Our chemical formulation maintains a stable operational voltage plateau under sudden RF current spikes, preventing the voltage drop-offs that standard primary batteries suffer during wireless signal burst phases.
Q3: What are the shipping restrictions for this battery model?
A: The CP1003850 fully complies with UN38.3 test protocols. Depending on the order volume, we provide standard Class 9 hazardous goods documentation for safe international ocean or air freight.
