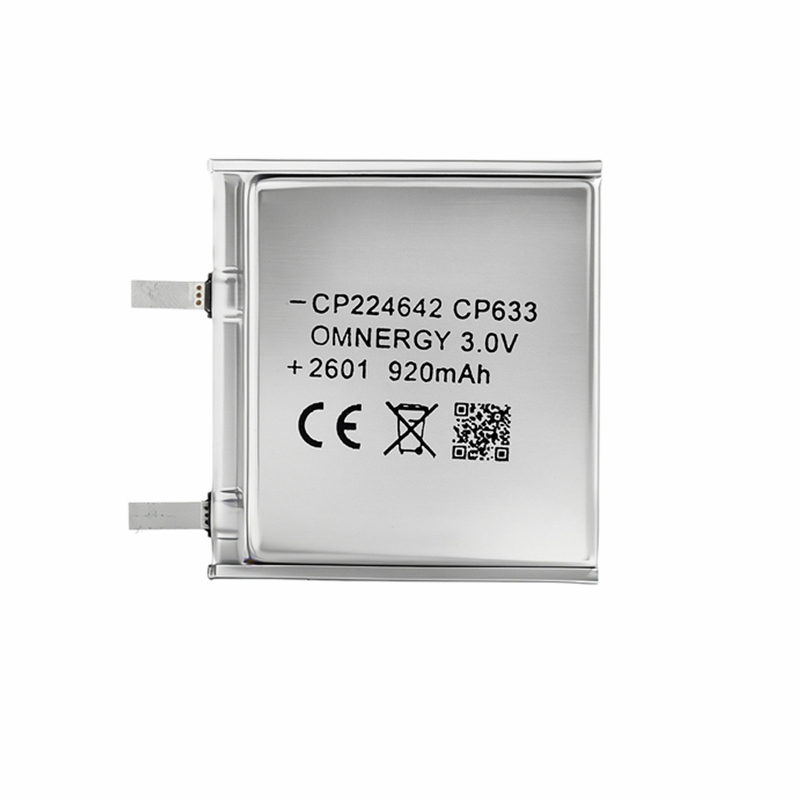

CP224642 Lithium Pouch Cell

  • CP224642 Lithium Pouch Cell
CP224642 Lithium Pouch Cell
  • Omnergy
  • China
  • 15 days
  • 750 million per year

Low Self Discharge 920mAh Thin Flat Lithium 3.0V CP224642 Lithium Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.

Specifications


The CP224642 lithium pouch cell is a kind of prismatic battery that has a layer of aluminum plastic film on the outer bread of liquid or semi-solid lithium-ion, it's not a metal hard case. So, compared with ordinary square batteries, the weight can be lighter, and it can be easily made into different sizes and shapes. The advantages of pouch cell batteries are higher energy density with the same weight, higher discharge rate, more safety performance, and lower internal resistance. However, its more difficult to produce, and the technical requirements for the factory will be higher. The pouch cell lithium battery often used in racing motorcycles,drones, RC racing cars, jump starters, and any applications that require magnification , explosive power, and instant powerful output.


Technical Parameters



Product Namelithium Pouch Cells
Nominal Discharge current            2mA
Nominal Voltage                             3V
Nominal Capacity                    920mAh
Continuous Current(Max)            50mA
Pulse Current (Max)                    150mA
Operating Temperature                 -20℃~60℃
Storage  Conditions                        ≤+30℃
Electrode Assembly Method        Stacking
Weight8.5g


Size

pouch cell battery

Benefits of CP224642 Lithium Pouch Cell

  • High Voltage Response, Stable During Most of the Lifetime of the Application

  • Energy Density up to 830Wh/L

  • Wide Operating Temperature Range (-20℃~+60℃)

  • Low Self-discharge Rate



Key Features of CP224642 Lithium Pouch Cell

  • Optimized Battery Structure, Full Discharge Capacity

  • Long Endurance of the lithium pouch cell

  • No Passivation



Main Applications of CP224642 Lithium Pouch Cell

  • Security System

  • Smart Metering

  • RFID and Tracking System

  • Wireless Transmitting

  • Smart Home Devices

  • Military Devices


More Products of CP Lithium Manganese Pouch Batteries

ModelNominall Voltage (V)Nominal Capacity (mAh)Standard Current (mA)Maximum Continuous Current (mA)Maximum Pluse Current (mA)Max Dimension (mm)Effective Electrode Area (cm2)The Electrode StructureWeight (g)
CP2238303.0400240802.2*39* 3025.3winding4.5
CP2246423.0920250902.2*46*4229.2lamination8.5
CP2620303.0260116.5502.6*20*307.2lamination3.5
CP3027523.010302661003.0*27*5221.8lamination7.0
CP3050503.020003662003.0*50*5140.9lamination16
CP3013303.0200116.5503.0*13*309.0winding3.0
CP3025253.0400116.5503.0*25*258.5lamination3.5
CP3325443.0900150903.3*25*4415.9lamination6.0
CP3830473.011001050015003.8*30*4770.0winding8.9
CP4050603.0300010100030004.0*50*60210winding24.0
CP5020303.0900116.5505.0* 20*308.0lamination7.0
CP5024403.01200550010005.0*24*4083winding9.0
CP5050503.0300010100030005.0*50*51180winding24.0
CP6024293.01100216.5506.0*24*28.59.4lamination8.0
CP6024463.01600550010006.0*24*46100winding12.0
CP6024463.019003662006.0*24*4616lamination13.0
CP50241103.0400051203505.0*24*11044lamination29.0
