CP383047 3V 1300mAh Ultra-Thin Lithium Manganese Pouch Battery High-Capacity Power Built for Low-Profile Hardware
- Omnergy
- China
- 15 days
- 750 million per year
Bulk source the CP383047 3V 1300mAh lithium manganese pouch battery. Slim 3.9mm design, 9.5g lightweight, <2% annual self-discharge. Engineered for GPS tracking, Active RFID, and medical machinery.
CP383047 3V 1300mAh Ultra-Thin Lithium Manganese Pouch Battery: High-Capacity Power Built for Low-Profile Hardware
For modern hardware engineers, the ultimate challenge is balancing the mathematical reality of battery capacity with the aesthetic and mechanical demands of compact product design. When standard cylindrical cells are too bulky, and coin cells lack the energy density your circuit requires, the solution lies in optimized geometry.
The CP383047 3V 1300mAh Lithium Manganese Dioxide LiMnO2 Soft Pack Battery bridges this gap perfectly. Delivering a massive 1300mAh capacity inside a razor-thin 3.9mm profile, this non-rechargeable pouch cell gives your long-lifecycle IoT, security, and industrial tracking hardware a competitive edge.
Technical Specifications of CP383047 3V 1300mAh
| Core Parameter | Engineered Value |
| Model Number | CP383047 (Soft Pack / Pouch Cell) |
| Chemical Formulation | Lithium Manganese Dioxide LiMnO2 |
| Nominal Voltage | 3.0V |
| Rated Capacity | 1300mAh |
| Physical Dimensions | 3.9mm × 30mm × 47mm |
| Unit Weight | ~ 9.5g |
| Operating Temperature | -40°C to +60°C |
| Annual Self-Discharge Rate | ≤2% per year (at ambient room temperature) |

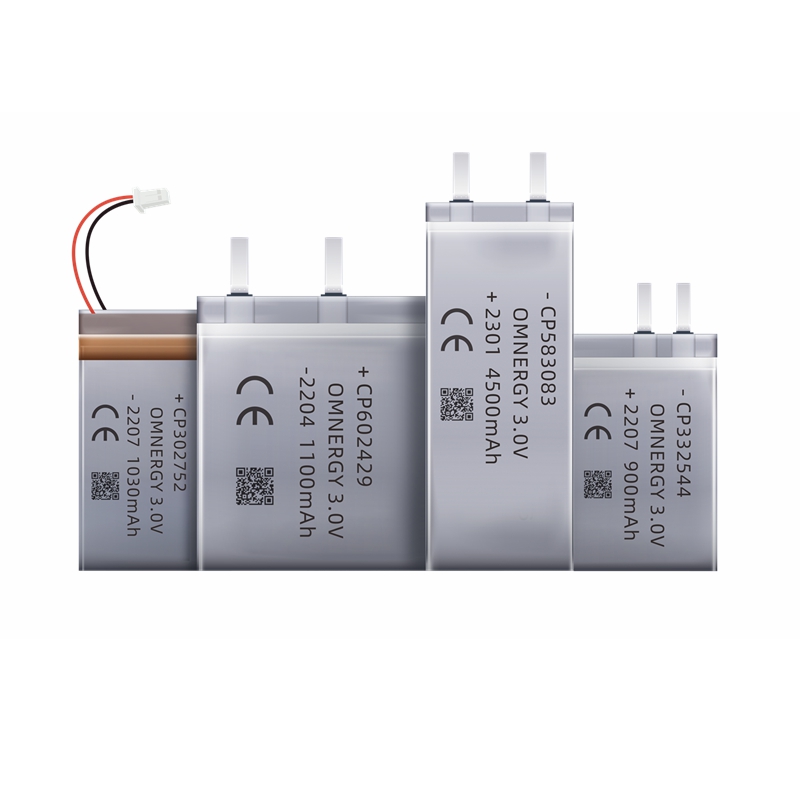

Full Range of Lithium Manganese Pouch Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Why Leading Hardware Engineers Specify the CP383047
■ Form-Factor Optimization: 3.9mm Thickness & 9.5g Weight
Traditional steel-cased batteries force you to build bulky enclosures. The CP383047 utilizes a flexible aluminum-laminated foil pouch. Weighing just 9.5 grams, it allows for flatter internal PCB layouts, meaning you can shrink your overall product casing, cut shipping weights, and improve the user ergonomics of wearables or handheld devices.
■ True Longevity: <2% Self-Discharge for Decades of Readiness
Devices like smart meters, backup memory systems, and security alarms spend most of their lifespans waiting for a critical moment to act. Our specialized LiMnO2 chemistry restricts internal self-discharge to less than 2% annually. Your device stays powered up and operationally dependable, even after years on the shelf or in deep-standby states.
■ Thermal Resilience for Harsh Field Deployments
Whether locked in a shipping container baking under the sun or deployed in freezing winter climates, your power supply cannot fail. The CP383047 maintains a steady, flat discharge curve across a harsh thermal spectrum ranging from -40°C to +60°C.
Key Commercial Application Areas
The unique physical dimension-to-capacity ratio of the CP383047 makes it the default primary power choice for major B2B sectors:
Asset Tracking & Positioning: Long-term power for ultra-compact GPS tracking and positioning systems that require extended deployment windows without maintenance.
Smart Logistics & IoT: High-density power source for Active RFID tags, asset-level sensors, and supply chain telemetry nodes.
FinTech & Secure Transactions: Flat form factor fits cleanly into next-gen smart banking cards, display tokens, and authentication hardware.
Medical Machinery & Devices: Ultra-safe, stable power deployment for clinical wearables, portable smart instruments, and point-of-care patient monitors.
Security & Automation: Dependable power for wireless remote controllers, proximity sensors, and security alarm systems.
Industrial Monitoring: Ideal for industrial utility meters, smart testing instruments, and critical memory backup support power supplies (RAM/CMOS).
FAQ
Q: What are the engineering advantages of using a CP383047 pouch battery instead of a standard CR Series button cell?
A: While standard button cells are convenient, they max out at lower capacities, which limits the transmission range and lifespan of data-heavy devices like GPS trackers or Active RFID tags. The CP383047 provides a much higher 1300mAh capacity inside an ultra-flat 3.9mm profile, meaning your device can transmit data more frequently and last significantly longer without increasing product thickness.
Q: How does the CP383047 soft pack manage safety in close-contact medical machinery?
A: Unlike rigid cylindrical cells that can build up severe internal pressure under abnormal conditions, the CP383047 uses an aluminum-laminated soft packaging. In extreme failure scenarios, the pouch safely expands and vents without explosive fragmentation, ensuring maximum safety for portable medical instruments and user-facing smart electronics.
Secure Your Supply Chain: Factory-Direct B2B Solutions
In the industrial electronics market, consistency is non-negotiable. We provide certified, batch-traceable CP383047 primary lithium batteries with customizable termination options (leads, pins, or specific connectors) to drop right into your automated assembly lines.
