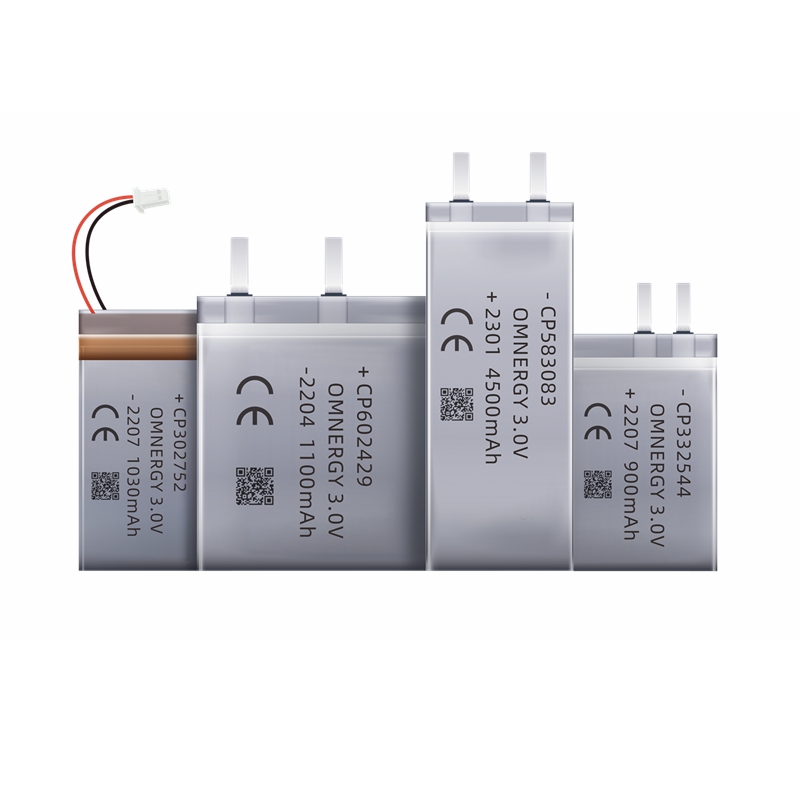

CP451728 Li-MnO2 Lithium Pouch Cell
- Omnergy
- 中国
- 15 days
- 750 million per year
The CP451728 is a 3V non-rechargeable lithium manganese pouch cell battery, renowned for its ultra-thin design, high energy density, and excellent safety features. It is widely used in electronic shelf labels (ESL), smart cards, medical sensors, and various IoT devices, providing a stable and long-lasting power solution.
Technical Parameters
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90mAh | 1mA | 15mA | 30mA | 0.7*30*41 | Laminating Structure | 1.3 |
| CP076045 | 3 | 230mAh | 2mA | 100mA | 150mA | 0.7*60*45.5 | Laminating Structure | 2.6 |
| CP102833 | 3 | 120mAh | 1mA | 30mA | 50mA | 1.0*28.5*33.5 | Laminating Structure | 1.2 |
| CP114752 | 3 | 540mAh | 1mA | 100mA | 200mA | 1.15*47*52.5 | Laminating Structure | 4.8 |
| CP155050 | 3 | 600mAh | 5mA | 150mA | 300mA | 1.5*50*50 | Winding Structure | 6.5 |
| CP210619 | 3 | 25mAh | 0.25mA | 3mA | 8mA | 2.1*6.5*19.5 | Laminating Structure | 0.35 |
| CP223830 | 3 | 400mAh | 2mA | 100mA | 200mA | 2.3*39*30 | Winding Structure | 3.6 |
| CP224147 | 3 | 900mAh | 1mA | 500mA | 1000mA | 2.2*45.5*48 | Winding Structure | 7.5 |
| CP224642 | 3 | 920mAh | 2mA | 50mA | 90mA | 2.2*46*42 | Laminating Structure | 8.5 |
| CP301330 | 3 | 200mAh | 5mA | 50mA | 100mA | 3.0*13.5*30.5 | Winding Structure | 2 |
| CP302752 | 3 | 950mAh | 5mA | 300mA | 500mA | 3.0*27*52 | Winding Structure | 7.5 |
| CP302775 | 3 | 1450mAh | 5mA | 300mA | 500mA | 3.0*27*75 | Winding Structure | 10.5 |
| CP303555 | 3 | 1350mAh | 5mA | 500mA | 1000mA | 3.0*35*55 | Winding Structure | 10.5 |
| CP305050 | 3 | 1800mAh | 5mA | 800mA | 1200mA | 3.1*50*51 | Winding Structure | 13.8 |
| CP332544 | 3 | 750mAh | 5mA | 150mA | 300mA | 3.3*25*44 | Winding Structure | 6 |
| CP383047 | 3 | 1300mAh | 5mA | 400mA | 800mA | 3.9*30*47 | Winding Structure | 9.5 |
| CP403555 | 3 | 1600mAh | 5mA | 400mA | 800mA | 4.0*35*55 | Winding Structure | 12 |
| CP431520 | 3 | 220mAh | 5mA | 200mA | 300mA | 4.3*15*20 | Winding Structure | 2 |
| CP451728 | 3 | 400mAh | 10mA | 100mA | 200mA | 4.5*16.8*28.5 | Winding Structure | 3.5 |
| CP501728 | 3 | 450mAh | 10mA | 100mA | 200mA | 5.0*16.8*28.5 | Winding Structure | 3.8 |
| CP502025 | 3 | 500mAh | 2mA | 100mA | 200mA | 5.1*20*25 | Winding Structure | 4.5 |
| CP502030 | 3 | 600mAh | 5mA | 150mA | 300mA | 5.2*20.5*30.5 | Winding Structure | 5 |
| CP502425 | 3 | 600mAh | 5mA | 150mA | 300mA | 5.2*25*26 | Winding Structure | 4.8 |
| CP502440 | 3 | 1200mAh | 5mA | 300mA | 500mA | 5.0*24*40.5 | Winding Structure | 9 |
| CP502495 | 3 | 3200mAh | 5mA | 800mAh | 1600mA | 5.2*24.5*95.5 | Winding Structure | 23 |
| CP505050 | 3 | 3000mAh | 10mA | 1000mA | 3000mA | 5.0*50*51 | Winding Structure | 24 |
| CP505060 | 3 | 4300mAh | 10mA | 1500mA | 3000mA | 5.2*51*61 | Winding Structure | 30 |
| CP521728 | 3 | 500mAh | 10mA | 100mA | 200mA | 5.2*16.5*28.5 | Winding Structure | 4 |
| CP551728 | 3 | 520mAh | 10mA | 100mA | 300mA | 5.5*16.8*28.5 | Winding Structure | 4 |
| CP583083 | 3 | 4000mAh | 10mA | 1000mA | 2000mA | 5.8*30*83 | Winding Structure | 27 |
| CP601822 | 3 | 450mAh | 5mA | 200mA | 300 mA | 6.0*18*22 | Winding Structure | 3.8 |
| CP601967 | 3 | 1800mAh | 1mA | 300mA | 500 mA | 6.0*19*65 | Winding Structure | 13.5 |
| CP602429 | 3 | 1100mAh | 2mA | 16.5mA | 50 mA | 6.0*24*28.5 | Laminating Structure | 8 |
| CP602429 | 3 | 900mAh | 1mA | 300mA | 500 mA | 6.0*24*28.5 | Winding Structure | 7 |
| CP602446 | 3 | 1600mAh | 5mA | 400mAh | 800mA | 6.0*24*46 | Winding Structure | 12 |
| CP653235 | 3 | 1800mAh | 5mA | 800mAh | 1200mA | 6.7*32*35 | Winding Structure | 13 |
| CP702030 | 3 | 900mAh | 1mA | 300mAh | 500mA | 7.0*20*30 | Winding Structure | 7 |
| CP702440 | 3 | 1600mAh | 10mA | 500mAh | 1000mA | 7.2*24*41 | Winding Structure | 11.5 |
| CP702446 | 3 | 2000mAh | 5mA | 500mAh | 1000mA | 7.2*25*47 | Winding Structure | 13 |
| CP702528 | 3 | 1100mAh | 5mA | 300mAh | 500mA | 7.0*25.5*28.5 | Winding Structure | 8 |
| CP703235 | 3 | 1800mAh | 5mA | 800mAh | 1200mA | 7.0*32*35 | Winding Structure | 13.5 |
| CP723434 | 3 | 1950mAh | 5mA | 1000mAh | 2500mA | 7.2*34*34 | Winding Structure | 14 |
| CP903083 | 3 | 6400mAh | 10mA | 1000mA | 2000mA | 9.2*30*83.5 | Winding Structure | 43.5 |
| CP905078 | 3 | 10000mAh | 10mA | 3000mA | 5000mA | 9.0*50*78 | Winding Structure | 70 |
| CP1003850 | 3 | 5200mAh | 10mA | 1000mA | 2000 mA | 10.0*38*50 | Winding Structure | 35 |
| CP1004040 | 3 | 4300mAh | 5mA | 1000mA | 1500 mA | 10.2*40.5*40.5 | Winding Structure | 27 |
| CP1005050 | 3 | 7500mAh | 10mA | 1000mA | 1500 mA | 10.5*52.5*52.5 | Winding Structure | 50 |

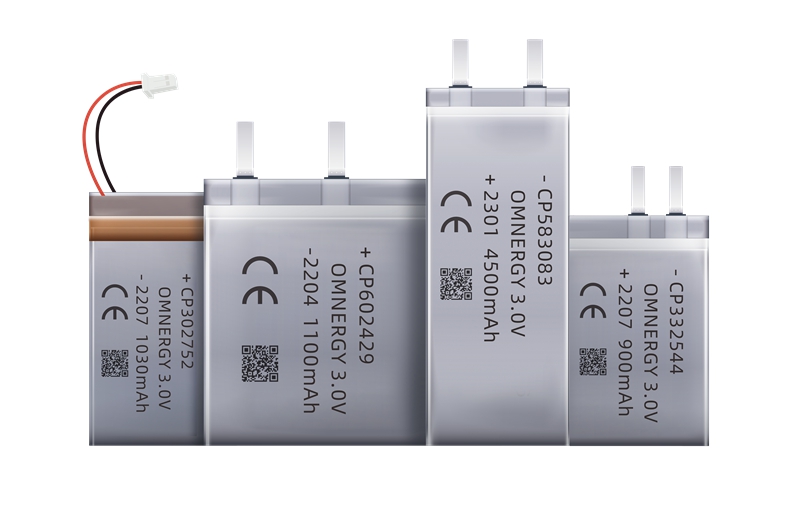

CP451728 3V Disposable Lithium Manganese Pouch Cell Battery
The CP451728 is a high-performance, disposable, non-rechargeable 3V lithium manganese dioxide (LiMnO2) soft pack battery. It utilizes advanced laminated soft packaging technology, providing high energy density and long service life while achieving an extremely thin, lightweight, and highly safe design. This product is an ideal alternative to traditional button cells and hard-shell batteries, especially suitable for modern electronic devices with strict space and weight requirements.
Key Product Features
Standard Voltage 3.0V: Provides a stable and reliable output voltage, ensuring stable operation of the device for extended periods.
Ultra-High Energy Density: Delivers higher capacity in a compact size, significantly extending device battery life.
Ultra-Thin and Lightweight Design: Uses a flexible soft pack structure, resulting in an extremely thin and lightweight design, greatly saving internal space in devices.
Excellent Safety Performance: Features leak-proof and anti-swelling properties, ensuring safer use and effectively protecting precision circuits.
Wide Operating Temperature Range: Maintains good discharge performance over a wide range of ambient temperatures.
Low Self-Discharge Rate: Annual self-discharge rate is less than 1%, providing an extremely long storage life (up to 10 years).
Environmentally Compliant: The product complies with RoHS and other environmental directives.
Typical Application Areas
Due to its reliable performance and miniaturization advantages, the CP451728 battery is widely used in the following areas:
Electronic Shelf Labels (ESL): Provides maintenance-free power for wireless electronic price tags for 5-10 years.
Internet of Things (IoT) Devices: Including smart sensors, locators, asset tracking tags, etc.
Smart Wearables and Medical Devices: Such as disposable medical patches, temperature monitoring devices, smart cards, and RFID tags.
Backup and Memory Power: Used in devices requiring data retention during power outages, such as motherboard clocks and smart meters.
Consumer Electronics: Various miniaturized and portable electronic devices.
Why choose our CP451728 battery?
Reliable Quality: Fully automated production lines and strict quality control processes ensure consistent performance for every battery.
Comprehensive Certifications: The product can obtain UL, CE, UN38.3, and other international safety certifications (available upon customer request). Technical Support: We provide professional technical support for battery selection, optimizing battery performance based on your specific application.
Customization Services: We offer flexible customization options for capacity, size, leads, and connectors to meet your specific project requirements.
Looking for a long-lasting power source for your electronic price tags or IoT devices? The CP451728 lithium manganese pouch battery is your efficient and reliable choice. Contact us for detailed datasheets, samples, and pricing.
