CP502440 3V 1200mAh Primary Lithium Manganese Pouch Battery Heavy-Duty Capacity in an Ultra-Low Profile Footprint
- Omnergy
- China
- 15 days
- 750 million per year
Bulk wholesale CP502440 3V 1200mAh primary lithium manganese pouch batteries. Slim 5.0*24*40.5 mm form factor, ≤2% self-discharge. Ideal for high-drain GPS trackers, medical devices, and IoT sensors.

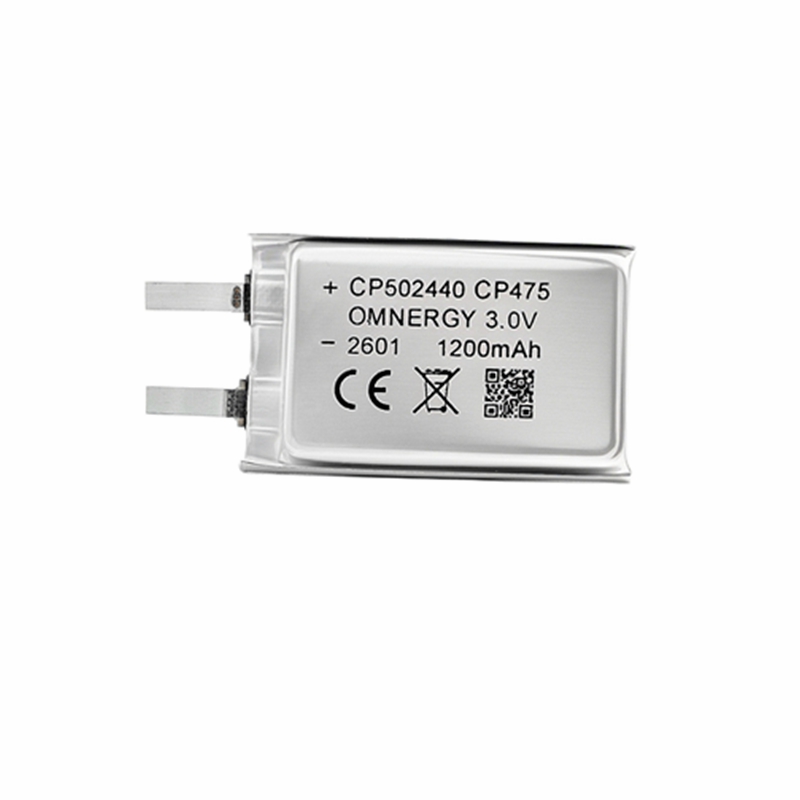

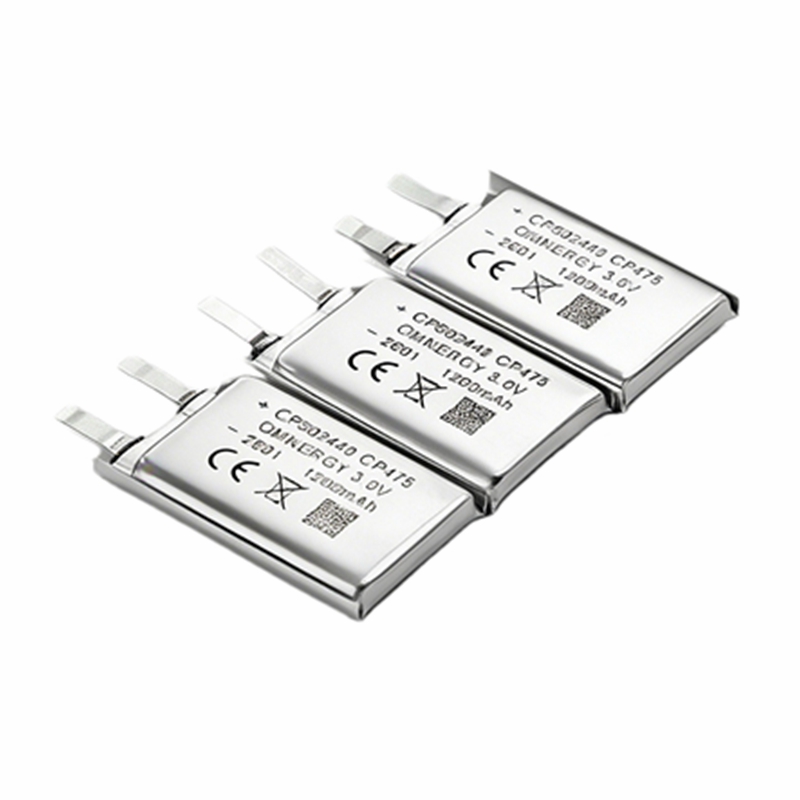

CP502440 3V 1200mAh Primary Lithium Manganese Pouch Battery: Heavy-Duty Capacity in an Ultra-Low Profile Footprint
When your next-generation smart device demands massive power capacity but mechanical constraints limit your enclosure to a few millimeters of depth, standard coin cells fall short, and cylindrical batteries add unacceptable bulk. The CP502440 3V 1200mAh Primary Lithium Manganese Dioxide LiMnO2 Pouch Battery offers the definitive architectural solution.
Featuring a razor-thin 5.0mm profile and a high-density 1200mAh reservoir, this ultra-lightweight (9g) soft-pack battery bridges the gap between massive energy density and ultra-low-profile device engineering. It is purpose-built to deliver long-term, continuous current and stable pulse discharge to high-drain IoT systems.
Core Technical Specifications of CP502440 3V 1200mAh
| Parameter | Technical Specification |
| Model Number | CP502440 |
| Electrochemical System | Lithium Manganese Dioxide LiMnO2 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 1200mAh |
| Dimensions (Max) | 5.0*24*40.5 mm |
| Weight | Approx. 9.0g |
| Operating Temperature | -40°C to +60°C |
| Annual Self-Discharge Rate | ≤2% per year (at room temperature) |
| Structure Type | Flexible Aluminum-Plastic Laminated Soft Pack |
Technical Parameters of CP Series Primary Lithium Manganese Pouch Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminating Structure | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminating Structure | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminating Structure | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminating Structure | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Winding Structure | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminating Structure | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Winding Structure | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Winding Structure | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminating Structure | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Winding Structure | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Winding Structure | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Winding Structure | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Winding Structure | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Winding Structure | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Winding Structure | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Winding Structure | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Winding Structure | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Winding Structure | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Winding Structure | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Winding Structure | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Winding Structure | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Winding Structure | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Winding Structure | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Winding Structure | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Winding Structure | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Winding Structure | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Winding Structure | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Winding Structure | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Winding Structure | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Winding Structure | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Winding Structure | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Winding Structure | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminating Structure | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Winding Structure | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Winding Structure | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Winding Structure | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Winding Structure | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Winding Structure | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Winding Structure | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Winding Structure | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Winding Structure | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Winding Structure | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Winding Structure | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Winding Structure | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Winding Structure | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Winding Structure | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Winding Structure | 50 |
Key Advantages for Hardware Designers & Sourcing Managers
1. Form Factor Optimization for Slim Enclosures
The rectangular footprint of the CP502440 is engineered to lie completely flat alongside internal PCBs, embedded antennas, and slim display modules. By eliminating the heavy, rigid metal casing found in traditional cylindrical cells, this pouch battery maximizes your device's internal space utilization, allowing you to design more compact hardware without sacrificing runtime.
2. Extended Deployment Lifespan ( Annual Self-Discharge)
Long-term IoT tracking deployments and safety hardware often sit in standby or storage for extended periods. Thanks to its chemically stable chemistry, the CP502440 loses less than 2% of its nominal capacity annually. This guarantees an operational readiness life of up to 10 years depending on your device's active duty cycle.
3. Rugged Industrial-Grade Thermal Resilience
From sub-zero logistics transport tracking to heat-retentive industrial sensor bays, the CP502440 operates reliably across a wide temperature spectrum from -40°C up to +60°C, maintaining a highly stable and predictable voltage discharge curve.
Targeted Industrial Application Frameworks
The high capacity and flexible geometry of the CP502440 make it the primary choice for several demanding B2B ecosystems:
High-Drain Asset Tracking: Long-life GPS tracking and asset positioning systems, fleet management telematics, and heavy-duty cargo monitoring tags.
IoT & Wireless Communication: Long-range active RFID tags, localized environmental sensor networks, and commercial wireless remote controllers.
Smart Financial Infrastructure: Powered banking cards, advanced biometric security tokens, and electronic identity access badges.
Medical Equipment Engineering: Portable smart diagnostic instruments, clinical machinery backup power, and wearable patient-monitoring systems.
Security & Infrastructure: Industrial instrument power supplies, smart utility meters (), wireless commercial security alarms, and environmental safety sensors.
Memory Backup Systems: Critical non-volatile backup power for components to safeguard data integrity during unexpected primary power loss.
B2B Wholesale Logistics & Customization Capabilities
We partner directly with global OEMs, ODMs, and industrial component purchasing managers to provide seamless, scalable power integration.
B2B Wholesale Operations: Exclusively focused on bulk industrial procurement and long-term contract manufacturing.
Flexible Custom Engineering: Available with custom tab configurations, lead wires, specific terminal connectors, or multi-cell series/parallel battery pack assemblies.
Global Shipping Compliance: Fully certified with comprehensive documentation portfolios—including UN38.3, MSDS, and UL safety standards—ensuring hassle-free international customs clearance and cross-border logistics.
Request Technical Datasheets & Prototyping Samples
Do you require specific pulse-discharge simulation graphs, 3D CAD models ( files), or sample batches for your engineering team's pilot testing?
[Contact Our Technical Engineering Department] today to explore volume tier pricing and secure your design evaluation samples.
