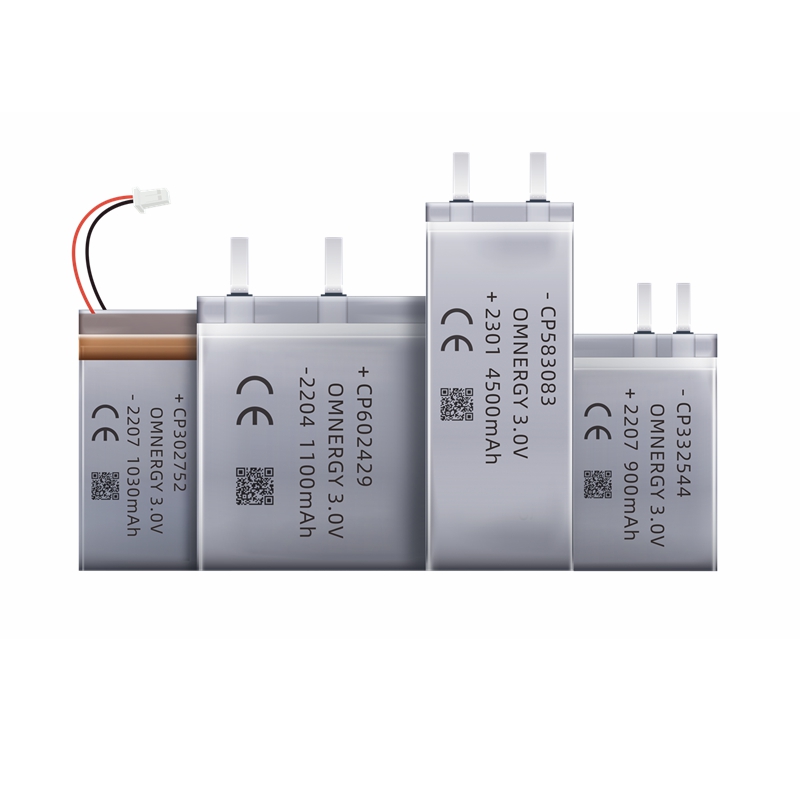

CP551728 3V 520mAh Ultra-Thin Lithium Manganese Pouch Battery The High-Density Micro-Power Engine for Next-Gen IoT
- Omnergy
- 中国
- 15 days
- 1000 million per year
High-energy CP551728 3V 520mAh lithium manganese soft-pack battery. Only 5.5mm thick, <2% self-discharge. Ideal for GPS trackers, active RFID, smart medical devices, and industrial IoT. Request a custom quote today!
CP551728 3V 520mAh Ultra-Thin Lithium Manganese Pouch Battery: The High-Density Micro-Power Engine for Next-Gen IoT
When modern IoT architecture demands ultra-slim profiles, traditional cylindrical cells or rigid coin batteries often fail to deliver the capacity needed for long-range wireless pulses.
The CP551728 3V 520mAh Lithium Manganese Dioxide LiMnO2 Soft-Pack Battery is engineered specifically to eliminate this engineering bottleneck. Packing an impressive 520mAh capacity into a razor-thin, 4-gram flexible geometry, this primary cell provides the precise voltage stability and reliable pulse discharge required by modern smart hardware.
Technical Matrix & Specifications of CP551728 3V 520mAh
| Parameter | Performance Profile |
| Model | CP551728 |
| Chemistry | Lithium Manganese Dioxide Li-MnO2 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 520mAh |
| Physical Dimensions | 5.5 mm × 16.8 mm × 28.5 mm (Thickness × Width × Length) |
| Ultra-Lightweight Weight | Approx. 4.0g |
| Annual Self-Discharge Rate | ≤2% per year (Optimized for extended shelf-life) |
| Operating Temperature Range | -40°C to +60°C |
Technical Parameters of CP Series Lithium Manganese Pouch Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Engineering Advantages: Why Product Designers Choose CP551728
1. Space-Optimized Form Factor (5.5mm Thickness)
With a height profile of just 5.5mm, the CP551728 slides seamlessly into compact enclosures, slim tracking tags, and multi-layered smart cards, giving your design team maximum internal layout freedom.
2. Exceptional Power-to-Weight Ratio
At just 4.0 grams, this cell delivers a sustained 520mAh capacity. It provides the high energy density necessary to support power-hungry data bursts (such as cellular pings or RF transmissions) without weighing down wearable or portable equipment.
3. Industrial-Grade Weatherproofing (-40°C to +60°C)
Whether deployed in freezing sub-zero cold chains or subjected to the ambient heat of industrial machinery, the CP551728 maintains a flat discharge curve to protect your critical data links from sudden dropouts.
4. >10-Year Shelf Life Stability
Featuring a microscopic annual self-discharge rate of less than 2%, this chemistry ensures that your devices remain operational even after years of warehouse storage or prolonged standby modes.
Target Applications & Deployment Scenarios
The high reliability and unique architecture of the CP551728 make it the preferred primary power choice across a wide spectrum of B2B verticals:
GPS Tracking & Logistics Locators: Supplies the instant high-current pulse needed for real-time cellular, GNSS, or Bluetooth location tracking in ultra-slim asset tags.
Active RFID Systems: Powers long-range automated supply chain inventory tags, transit passes, and automated toll systems.
Wireless Remote Controls: Ideal for high-end industrial controllers and smart home automation remotes requiring extended operational lifespans.
Medical Machinery & Healthcare Wearables: Provides a lightweight, stable power source for continuous glucose monitors (CGMs), smart health patches, and clinical diagnostic instruments.
Security & Alarm Arrays: Ensures zero-downtime performance for wireless intrusion sensors, smart locks, and smoke detectors.
Memory & Storage Backup Power: Serves as a long-term NVRAM/SRAM backup energy source for servers, industrial PLCs, and automotive telematics.
Next-Gen Financial Smart Cards: Fits within the strict laminating parameters of electronic bank cards, display cards, and dynamic CVV authentication tokens.
Industrial Metering & Intelligent Instrumentation: Powers smart water, gas, and electric flow meters, as well as portable environment-testing equipment.
B2B Sourcing & Customization Capabilities
At our state-of-the-art facility, we understand that off-the-shelf components don't always match custom hardware blueprints. We offer bespoke engineering options for the CP551728, including:
Customized tab configurations (solder tabs, wire connectors, or SMD pins).
Rigorous cell-to-cell consistency matching for multi-cell packs.
Comprehensive compliance certifications (UN38.3, RoHS, CE, UL).
Ready to optimize your device's power footprint? [Contact Our Technical Sales Team] to request an engineering datasheet, pricing tiers for volume production, or a batch of custom prototype samples.
