CP602446 3V 1600mAh Breaking Form Factor Barriers with Ultra-Thin, High-Capacity Lithium Power
- Omnergy
- China
- 15 days
- 750 million per year
Maximize space with the CP602446 3V 1600mAh lithium manganese soft pack battery. Ultra-thin (6mm), lightweight (12g), and optimized for GPS tracking, active RFID, and smart medical devices
CP602446 3V 1600mAh: Breaking Form Factor Barriers with Ultra-Thin, High-Capacity Lithium Power
In the rapidly evolving world of IoT, smart tracking, and wearable technology, bulk is the enemy of innovation. When traditional cylindrical or coin cell batteries force you to compromise your product's design, you need a power source that adapts to your vision.

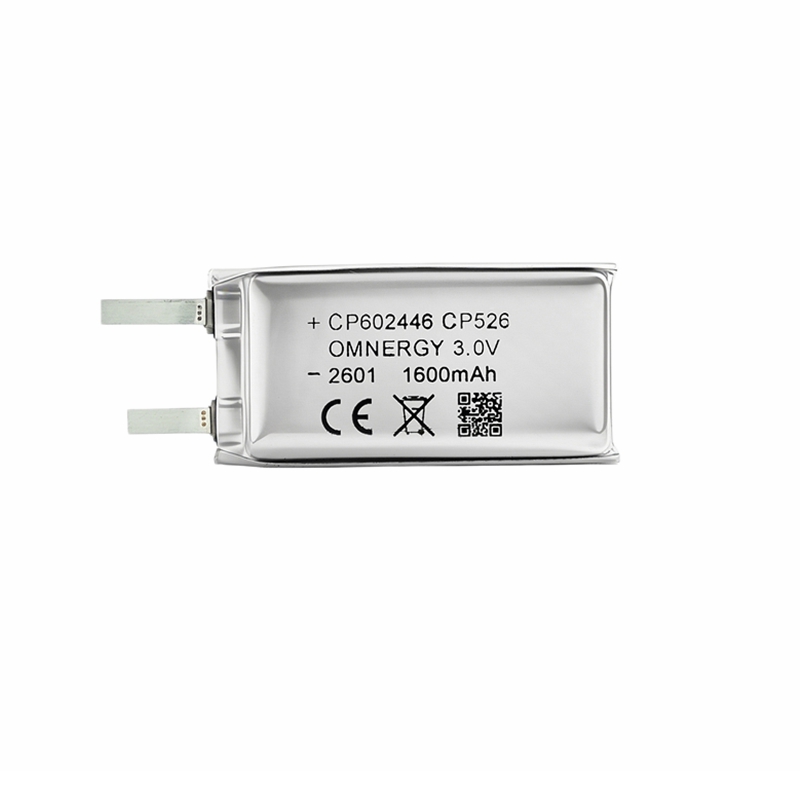

The CP602446 3V 1600mAh Primary Lithium Manganese Dioxide LiMnO2 Soft Pack Battery is engineered to bypass structural limitations. Featuring an incredibly slim 6.0mm thickness and a footprint of 24mm × 46mm, this high-energy density pouch cell delivers a powerful 1600mAh capacity in a feather-light 12g package. It is the ultimate low-profile energy solution for hardware developers who refuse to choose between sleek aesthetics and long-lasting runtime.
Technical Specifications of CP602446 3V 1600mAh
| Parameter | Specification |
| Model | CP602446 |
| Chemical System | Lithium Manganese Dioxide LiMnO2 |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 1600mAh |
| Dimensions | 6.0 mm (Thickness) × 24 mm (Width) × 46 mm (Length) |
| Weight | Approx. 12.0g |
| Operating Temperature | -40°C to +60°C |
| Self-Discharge Rate | ≤ 2% per year (at room temperature) |
Technical Parameters of Primary lithium batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Core Advantages: Designed for Next-Generation Hardware
1. Ultra-Thin, Pouch-Cell Architecture
At just 6.0mm thick, the CP602446’s flexible aluminum-foil packaging allows it to slide effortlessly into flat compartments. It eliminates the wasted space of round batteries, enabling engineers to design thinner, more ergonomic, and highly marketable enclosures.
2. High Energy-to-Weight Efficiency
Weighing only 12 grams, this battery offers an outstanding energy density profile. It packs a massive 1600mAh reservoir—giving your compact devices the sustained amperage required to handle modern wireless transmission protocols (such as BLE, Wi-Fi, and Cellular IoT) without adding bulk.
3. Extremely Low Self-Discharge (≤ 2%/Year)
Engineered with premium chemistry and advanced internal sealing, the CP602446 experiences less than 2% capacity loss per year in storage. This guarantees a shelf life of up to 10 years, ensuring safety equipment and emergency backup devices remain ready to perform at a moment’s notice.
4. Reliable Thermal Performance
Whether deployed in freezing outdoor environments or warm industrial environments, the CP602446 operates stably across a broad temperature range of -40°C to +60°C.
Targeted B2B Applications
The physical design and stable discharge curve of the CP602446 make it the premier choice for high-demand, thin-profile electronics:
GPS Tracking & Asset Recovery: Provides reliable, high-capacity primary or backup power for logistics trackers, fleet monitoring units, and high-value cargo tags.
Active RFID & Smart Tags: Supplies the consistent pulse currents required for long-range data transmission in automated warehousing and inventory control.
Security & Alarm Systems: Ensures maintenance-free, long-term operation for low-profile window/door sensors, wireless PIR sensors, and smart entry keypads.
Smart Medical Machinery: Powers wearable health patches, clinical diagnostic monitors, and handheld patient-tracking equipment requiring maximum safety and reliability.
Smart Bank Cards & Payment Terminals: Perfectly matches the thickness constraints of high-tech cold storage wallets, visual display payment cards, and portable OTP generators.
Memory Backup Power (SRAM/RTC): Preserves crucial system parameters and clock data in servers, PLCs, and smart grid infrastructure during primary power interruptions.
Industrial Utility Meters: Guarantees up to a decade of maintenance-free service life for smart water, gas, and heat flow meters.
Portable Smart Instrumentation: Fits snugly inside pocket-sized environment testers, portable gas detectors, and hand-held diagnostic meters.
Wireless Remote Controls: Ideal for slim industrial crane remotes, smart home control panels, and automated gate triggers.
Custom Battery Assembly & OEM Partnerships
Every hardware project has its own unique layout. We support your development cycle by offering customized configurations for the CP602446:
Custom Terminations: Wire leads, solder tabs, or customized connectors (JST, Molex, Hirose, etc.) to match your PCB layout.
Integrated Protection Circuits (PCM): Custom-designed protection boards to prevent over-discharge and external short circuits.
Multi-Cell Packs: Built-to-order configurations in series or parallel to meet your exact power specifications.
Ready to streamline your product's power layout? Contact our B2B engineering team today for technical datasheets, rapid product samples, and competitive volume pricing.
