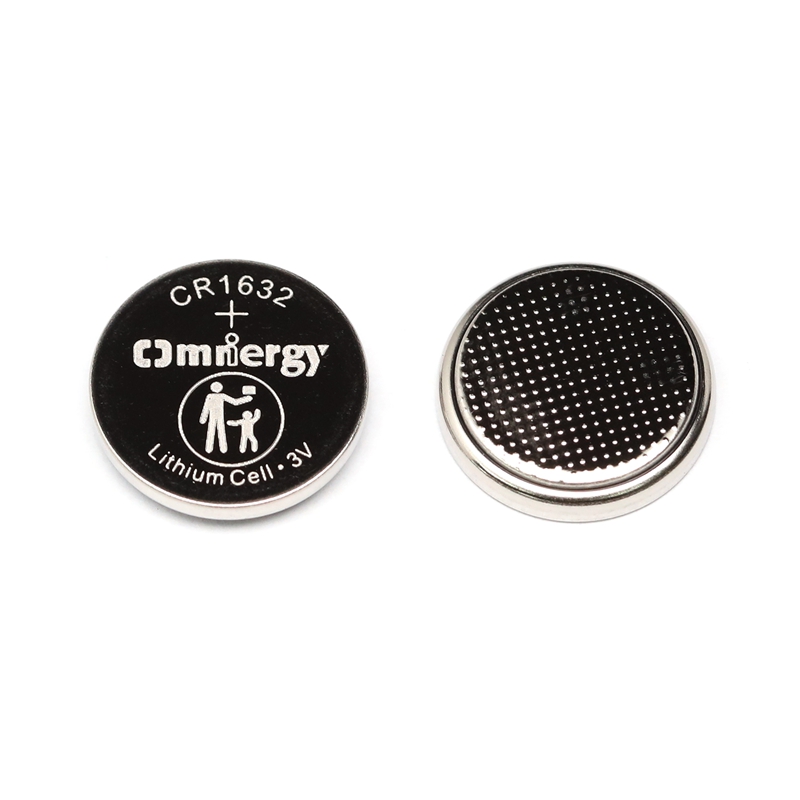

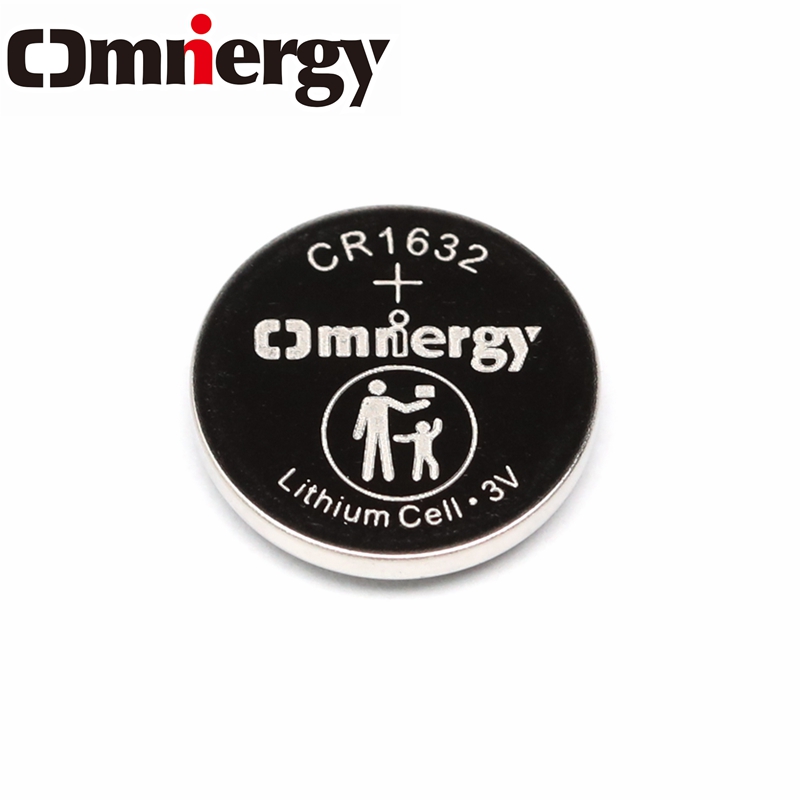

Omnergy CR1632 3V 120mAh Lithium Coin Cell
- Omnergy
- Yichang
- 7 days
- 750 million per year
Premium Omnergy CR1632 3V 120mAh Li-MnO2 coin cell battery. Extreme reliability from -20°C to 70°C. Ideal for NB CMOS, POS terminals, security systems, and printers. Request a wholesale quote.
Omnergy CR1632 3V 120mAh Lithium Coin Cell | High-Capacity Micro Power for Computing, POS, Security, and Enterprise Printers
When the limits of standard low-profile coin cells are pushed by the power demands of modern, connected hardware, space optimization takes a leap upward. The Omnergy CR1632 3V 120mAh Lithium Manganese Dioxide (LiMnO2) Coin Cell Battery is the definitive choice for applications requiring extended operational lifecycles without expanding circuit board footprints.
By maintaining a standardized 16mm diameter and utilizing a vertical profile of 16.0*3.2 mm, this cell unlocks an incredible 120mAh capacity. It provides more than double the energy payload of thinner cells in its class, serving as the high-capacity energy anchor for data-intensive commercial computing, secure fintech networks, and industrial automation.
Technical Specifications of Omnergy CR1632 3V 120mAh Lithium Coin Cell
| Technical Parameter | Specification |
| Battery Model | CR1632 |
| Chemical Composition | Lithium Manganese Dioxide (LiMnO2) |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 120mAh |
| Dimensions | Diameter: 16.0mm | Height: 3.2mm (16.0 *3.2mm) |
| Standard Weight | 2g |
| Operating Temperature | -20°C to +70°C |
Size of Omnergy CR1632 3V 120mAh Lithium Coin Cell
Characteristics of Omnergy CR1632 3V 120mAh Lithium Coin Cell
Full CR Series Lithium-Manganese Button Cell
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Nominal Current (mA) | Maximum Continuous Current (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Weight (g) |
| CR920 | 3 | 20 | 0.1 | 1 | 5 | Φ9.5X2.0 | 0.55 |
| CR927 | 3 | 28 | 0.1 | 1 | 5 | Φ9.5X2.7 | 0.6 |
| CR1025 | 3 | 30 | 0.1 | 2 | 5 | Φ10.0X2.5 | 0.7 |
| CR1216 | 3 | 25 | 0.1 | 2 | 5 | Φ12.5X1.6 | 0.7 |
| CR1220 | 3 | 38 | 0.1 | 2 | 5 | Φ12.5X2.0 | 0.8 |
| CR1225 | 3 | 50 | 0.1 | 2 | 5 | Φ12.5X2.5 | 0.9 |
| CR1616 | 3 | 50 | 0.1 | 3 | 8 | Φ16.0X16 | 1.2 |
| CR1620 | 3 | 70 | 0.1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632 | 3 | 120 | 0.2 | 3 | 8 | Φ16.0X3.2 | 2 |
| CR2016 | 3 | 80 | 0.1 | 5 | 15 | Φ20.0X1.6 | 2 |
| CR2025 | 3 | 150 | 0.2 | 5 | 15 | Φ20.0X2.5 | 2.6 |
| CR2032 | 3 | 220 | 0.2 | 5 | 15 | Φ20.0X3.2 | 3.2 |
| CR2050 | 3 | 330 | 0.4 | 5 | 15 | Φ20.0X5.0 | 4.7 |
| CR2320 | 3 | 130 | 0.2 | 6 | 20 | Φ23.0X2.0 | 3 |
| CR2325 | 3 | 190 | 0.2 | 6 | 20 | Φ23.0X2.5 | 3.3 |
| CR2330 | 3 | 260 | 0.2 | 6 | 20 | Φ23.0X3.0 | 4 |
| CR2335 | 3 | 300 | 0.2 | 6 | 20 | Φ23.0X3.5 | 4.3 |
| CR2354 | 3 | 560 | 0.4 | 6 | 25 | Φ23.0X5.4 | 6.9 |
| CR2430 | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2450 | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477 | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X7.7 | 10.5 |
| CR3032 | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832 | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11 |
The Engineering Edge: Why Specify the Omnergy CR1632?
1. Massive 120mAh Payload for Uninterrupted Lifecycles
By expanding the internal vertical volume to 3.2mm, this cell holds a significantly richer concentration of premium chemical active materials. For hardware design engineers, this means a massive drop in total cost of ownership (TCO) and field replacement costs, guaranteeing reliable background power for up to a decade.
2. High-Pulse Capability for IoT & Telemetry
Modern commercial hardware doesn't just store data; it transmits it. The internal architecture of our CR1632 is engineered for low internal resistance, allowing it to withstand sudden pulse current draws (e.g., RF mesh wake-ups, Bluetooth Low Energy bursts, or optical sensors) without suffering destabilizing voltage drops.
3. Industrial-Grade Thermal Survival (-20°C to 70°C)
From unventilated printing floors generating high ambient heat to outdoor security equipment exposed to freezing winter environments, the Omnergy CR1632 maintains stable internal chemical kinetics. The specialized organic electrolyte formula ensures structural integrity and zero cell swelling under high thermal strain.
Core Application Ecosystems
Notebooks (NB) & Motherboards
In enterprise laptops, servers, and embedded computers, maintaining the system BIOS configuration and Real-Time Clock (RTC) sync is crucial. The high capacity of the CR1632 ensures that system settings and network synchronization remain fully operational even during years of secondary power disconnection.
FinTech & Smart POS Terminals
Secure electronic payment terminals process sensitive encryption keys and compliance logs. Our CR1632 functions as the primary security backup cell, ensuring that anti-tamper mechanisms and volatile cryptographic memory stay fully energized to prevent hardware exploitation during main power shutoffs.
Enterprise Security & Access Control
When main grids are compromised, security frameworks must remain uncompromised.
Smart Door Locks: Providing multi-year main or emergency backup power for biometric and remote wireless entry systems.
Intrusion Detection Nodes: Ensuring a permanent baseline charge for wireless motion sensors, smoke detectors, and commercial glass-break arrays.
Commercial Printers & Instrumentation
High-Volume Printers: Serving as the motherboard CMOS battery to protect proprietary firmware parameters, life-cycle counter stats, and custom calibration data.
Industrial Instrumentation: Maintaining memory retention and accurate time-stamps in portable environmental data loggers, flow meters, and diagnostic tools.
B2B Customization & Manufacturing Excellence
Global Certifications & Zero-Leakage Architecture: Manufactured under strict ISO9001 and ISO14001 quality systems, our CR1632 cells are enclosed in a heavy-duty casing with an advanced hermetic crimp seal. Fully compliant with UL1642, CE, RoHS, REACH, and UN38.3, they are ready for global distribution and high-speed automated pick-and-place assembly.
Custom Pin and Terminal Tabs: We provide custom automated tab welding for SMT (Surface Mount Technology) and DIP (Through-Hole) configurations directly tailored to your precise PCB layouts.
Industrial Blister Packaging: Shipped in standardized anti-static trays designed to minimize processing overhead on your manufacturing floor.
Frequently Asked Questions
Can I replace a CR1620 battery with a CR1632 battery?
Both batteries output a nominal 3.0V and share an identical diameter of 16.0mm. However, the CR1632 is 3.2mm thick, whereas the CR1620 is only 2.0mm thick. If your device's battery holder has the vertical physical clearance to accommodate the additional 1.2mm, upgrading to the CR1632 is an excellent engineering choice, as it expands your capacity from 70mAh to 120mAh, nearly doubling your device's service life.
Why is the Omnergy CR1632 preferred over standard consumer coin cells for POS terminals?
Industrial POS terminals require uninterrupted current over many years to preserve volatile RAM encryption keys. Our CR1632 uses ultra-pure manganese dioxide and a specialized electrolyte that resists thermal degradation, preventing the terminal from losing its cryptographic security data across years of continuous deployment.
What is the expected shelf life of this factory-direct battery?
Thanks to our precision sealing technology and raw material purity, the internal self-discharge rate is restricted to under 2% annually when stored at standard room temperatures. This yields a highly dependable shelf life of up to 10 years before deployment.
Secure Your Global Component Supply Chain
Maximize your device autonomy and eliminate field failures with Omnergy's heavy-duty CR1632 batteries. Contact our engineering support division today for comprehensive technical data sheets, STEP models, and tiered high-volume commercial pricing.
