Maximize energy in low-profile devices with our CR3032 3V Lithium Battery. Featuring a unique 30mm wide footprint, 500mAh capacity, -20°C to 70°C operating range, and <2% self-discharge. Perfect for POS terminals and Industrial Controls.

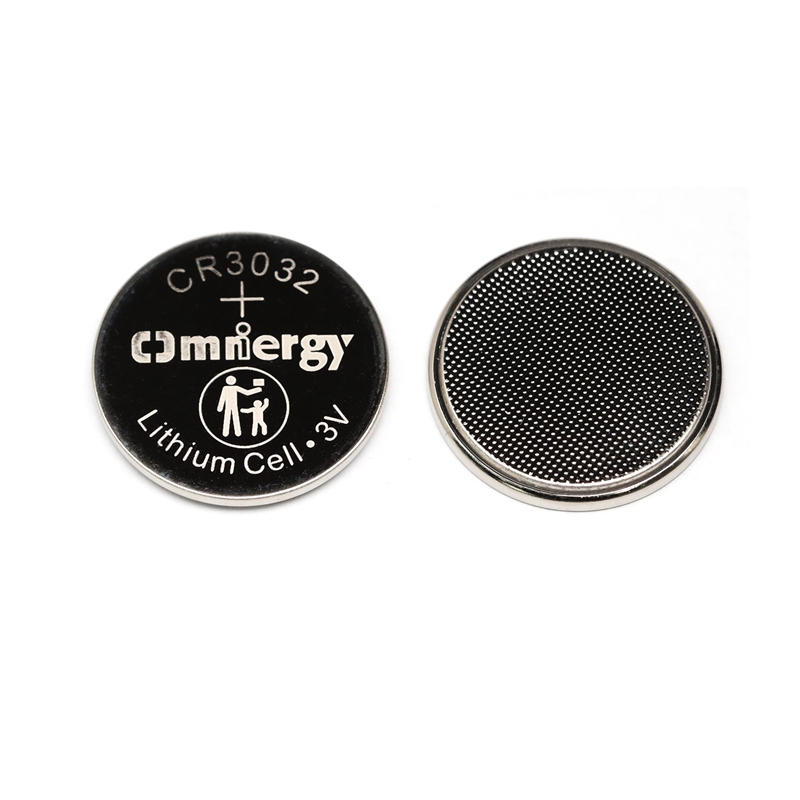

The Ultra-Wide Powerhouse: Premium CR3032 3V Lithium Coin Cell (500mAh)
When device design demands a slim profile but power requirements refuse to compromise, traditional batteries fall short. Enter the CR3032 3V Lithium Manganese Dioxide (Li-MnO2) Battery—the ultimate solution for engineers who need high capacity in a low-profile form factor.
Characterized by its unique, ultra-wide 30mm diameter, the CR3032 spreads its internal chemistry across a broader surface area. The result? A massive 500mAh capacity packed into a remarkably thin 3.2mm casing. It is the definitive, long-lasting power source for slim-line POS systems, tight industrial control panels, and innovative smart electronics.
Technical Specifications Data Sheet of 500mAh CR3032 3V Lithium Coin Cell
| Specification Parameter | Technical Detail |
| Battery Model | CR3032 |
| Chemistry | Primary Lithium Manganese Dioxide (Li-MnO2) |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 500mAh |
| Operating Temperature | -20°C to +70°C |
| Dimensions (Diameter x Height) | 30.0mm × 3.2mm |
| Annual Self-Discharge Rate | < 2% (at 20°C room temperature) |
| Rechargeable | No (Primary Cell) |
Full CR Series Lithium-Manganese Button Cell
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Nominal Current (mA) | Maximum Continuous Current (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Weight (g) |
| CR920 | 3 | 20 | 0.1 | 1 | 5 | Φ9.5X2.0 | 0.55 |
| CR927 | 3 | 28 | 0.1 | 1 | 5 | Φ9.5X2.7 | 0.6 |
| CR1025 | 3 | 30 | 0.1 | 2 | 5 | Φ10.0X2.5 | 0.7 |
| CR1216 | 3 | 25 | 0.1 | 2 | 5 | Φ12.5X1.6 | 0.7 |
| CR1220 | 3 | 38 | 0.1 | 2 | 5 | Φ12.5X2.0 | 0.8 |
| CR1225 | 3 | 50 | 0.1 | 2 | 5 | Φ12.5X2.5 | 0.9 |
| CR1616 | 3 | 50 | 0.1 | 3 | 8 | Φ16.0X16 | 1.2 |
| CR1620 | 3 | 70 | 0.1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632 | 3 | 120 | 0.2 | 3 | 8 | Φ16.0X3.2 | 2 |
| CR2016 | 3 | 80 | 0.1 | 5 | 15 | Φ20.0X1.6 | 2 |
| CR2025 | 3 | 150 | 0.2 | 5 | 15 | Φ20.0X2.5 | 2.6 |
| CR2032 | 3 | 220 | 0.2 | 5 | 15 | Φ20.0X3.2 | 3.2 |
| CR2050 | 3 | 330 | 0.4 | 5 | 15 | Φ20.0X5.0 | 4.7 |
| CR2320 | 3 | 130 | 2 | 6 | 20 | Φ23.0X2.0 | 3 |
| CR2325 | 3 | 190 | 2 | 6 | 20 | Φ23.0X2.5 | 3.3 |
| CR2330 | 3 | 260 | 2 | 6 | 20 | Φ23.0X3.0 | 4 |
| CR2335 | 3 | 300 | 2 | 6 | 20 | Φ23.0X3.5 | 4.3 |
| CR2354 | 3 | 560 | 0.4 | 6 | 20 | Φ23.0X5.4 | 6.9 |
| CR2430 | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2450 | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477 | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X7.7 | 10.5 |
| CR3032 | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832 | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11 |
Why Specify Our CR3032? Engineered for Slim-Line Endurance
1. Broad Footprint, Massive Capacity (500mAh)
Space constraints are the enemy of battery life. By utilizing a wider 30mm diameter, this cell achieves a robust 500mAh capacity without increasing device thickness. It offers the perfect golden ratio of ultra-thin design and extended operational life, dramatically reducing maintenance intervals.
2. Unwavering Thermal Stability (-20°C to 70°C)
Industrial and commercial devices do not live in perfectly climate-controlled environments. Formulated with advanced lithium chemistry, our CR3032 guarantees stable, continuous voltage discharge through freezing warehouses and sweltering automated factory floors, reliably operating from -20°C to 70°C.
3. The "Store & Forget" Advantage (<2% Annual Self-Discharge)
Inventory aging should not mean capacity loss. Thanks to high-purity internal components and a precision-engineered outer seal, the CR3032 boasts an ultra-low self-discharge rate of less than 2% per year. You can stock up your supply chain knowing these batteries will perform like new years after purchase.
4. Exacting Dimensional Precision (Φ30.0 × 3.2mm)
Manufactured to flawless global tolerances, this wide-format cell ensures perfect contact in standard CR3032 PCB surface-mounts and battery holders. Its expansive surface area also provides excellent electrical contact, preventing micro-disconnects in high-vibration industrial settings.
Core Application Ecosystems
The unique geometry of the CR3032 makes it the battery of choice for applications requiring a combination of thinness and high capacity. It excels in:
Point of Sale (POS) Terminals: Providing essential memory backup and cryptographic key retention in modern, ultra-slim retail payment devices.
Industrial Control Boards: Acting as a highly reliable, low-profile Real-Time Clock (RTC) and SRAM backup for PLCs, automated machinery, and control systems.
Smart Cards & Active Badges: Powering RFID cards, active corporate security badges, and specialized toll-pass transponders where thickness is strictly limited.
Medical & Wearable Electronics: Supplying steady power to slim, body-worn monitoring patches and portable diagnostic equipment.
Specialty Measurement Instruments: Delivering long-term standby power for digital calipers, micrometers, and precision testing gear.
Expert FAQ: Sourcing the CR3032
Q: What is the distinct advantage of a CR3032 over a standard CR2032? A: The primary difference is the physical diameter and resulting power capacity. A CR2032 is 20mm wide and typically holds around 220mAh. The CR3032 is significantly wider at 30mm, allowing it to pack a 500mAh capacity while remaining just as thin (3.2mm). It offers more than double the runtime for devices that can accommodate a wider battery slot.
Q: Is the CR3032 suitable for devices that experience frequent vibrations? A: Yes. Its broad 30mm surface area allows for wider, more secure contact points in battery holders, making it highly resistant to power interruptions caused by mechanical vibration in industrial environments.
Q: Can I get these batteries with custom solder tabs for PCB mounting? A: Absolutely. Because the CR3032 is frequently used in industrial motherboards, we offer custom spot-welding services, including standard horizontal, vertical, and custom-angled pins/tabs for seamless PCB integration.
Power Your Innovations Without the Bulk
Do not let limited vertical space restrict your device's power capabilities. Upgrade to the ultra-wide, high-capacity CR3032 and deliver unparalleled reliability to your end-users.
