Power Glory’s CR123A Cylindrical Battery Addresses the Challenge of High-Cost Power Supply in Harsh Operating Conditions
Power Glory’s CR123A Cylindrical Battery Addresses the Challenge of High-Cost Power Supply in Harsh Operating Conditions
In Industrial Internet of Things (IIoT) and smart device applications, a large number of devices operate long-term under harsh conditions where replacement is difficult, risks are high, and they must function around the clock in all weather conditions: building smoke alarms and security detectors must remain on standby 24/7, and the reliability of their power supply directly affects safety; Highway ETC gantries and outdoor location trackers are constantly exposed to intense sunlight, extreme cold, rain, and snow year-round; the labor, maintenance, and downtime costs associated with replacing batteries at high elevations or on closed roadways are high; smart water and gas meters are deeply buried in utility wells or embedded in walls, requiring coordination with residents, service interruptions, and sealing procedures for battery replacement, making maintenance cumbersome and costly.
The core requirements for these applications are highly consistent: plug-and-play operation, long-term maintenance-free use, stable power supply throughout the entire lifecycle, and reduced O&M costs.
With over two decades of deep expertise in the field of lithium micro-power sources, Power Glory’s CR123A lithium-manganese cylindrical battery—featuring high capacity, ultra-low self-discharge, an ultra-wide temperature range, and high pulse discharge capabilities—provides industrial-grade, long-lasting power solutions spanning several years for sectors such as security, smart metering, outdoor positioning, and emergency equipment.
I. What Is CR123A: Core Specifications for General-Purpose Industrial Long-Life Power Supply
CR123A is one of the most widely used lithium-manganese cylindrical battery specifications in industrial applications. It employs a mature and stable lithium-manganese dioxide chemistry system, featuring metallic lithium as the anode and manganese dioxide as the cathode, with a standard nominal voltage of 3.0V.
The model code corresponds to the industry-standard dimensions: 17 mm in diameter and 34.5 mm in length. Compared to conventional button cells, the cylindrical structure can accommodate more active material, resulting in higher energy density and greater discharge stability.
The Power Glory CR123A is manufactured using precision smart manufacturing processes, with electrical performance tailored to most industrial low-power devices and burst-load scenarios: the standard model has a capacity of 1,500 mAh, while the high-capacity model reaches up to 1,700 mAh; with a maximum continuous discharge current of 1,500 mA and a maximum pulse current of 3,000 mA, it effectively meets the dual requirements of low power consumption during device standby and instantaneous high loads for alarms and data uploads.
Additionally, with an energy density of up to 280 Wh/kg and an annual self-discharge rate of ≤2%, these batteries can provide long-term power supply for 5–10 years under typical low-power consumption conditions, meeting the long-lifecycle requirements of industrial equipment.
Note: The CR123A is a cylindrical lithium-manganese battery and must not be mixed with other cylindrical battery models such as CR2 or CR14250, nor should it be directly replaced with standard alkaline batteries, as there are differences between the two in terms of discharge capacity, temperature resistance, and self-discharge rate.
II. Three Core Advantages That Address Industry O&M Pain Points
Unlike ordinary consumer batteries, the Power Glory CR123A is designed for harsh industrial environments. Its three core performance features address industry challenges such as “frequent battery replacements, high inventory wastage, and power outages in extreme environments.”
1. High Capacity, Reducing Battery Swap Frequency and O&M Costs
The Power Glory CR123A is available in two versions: a standard 1,500 mAh model and a high-capacity 1,700 mAh model. The higher active material loading helps extend the device’s single-charge operating cycle. For high-cost scenarios such as decentralized outdoor deployment, high-altitude operations, in-home battery swaps, and maintenance during downtime, this reduces the need for mid-term battery replacement interventions, minimizes safety risks, project delays, and labor costs associated with battery swaps, and helps achieve “maintenance-free operation for years after installation.”
2. Ultra-Low Self-Discharge, Long-Term Maintenance-Free Operation After Installation
The annual self-discharge rate of Power Glory CR123A batteries is controlled within 2%. Once installed in a device, the battery retains its effective capacity even during long-term low-power standby or intermittent wake-up cycles, reducing the frequency of battery removal for recharging, as well as frequent maintenance and replacement. For applications such as security systems, meters, and positioning terminals—where post-installation maintenance is difficult—this helps lower the costs associated with operations and maintenance, troubleshooting, and replacement-related rework, ensuring stable operation throughout the device’s entire lifecycle.
3.Wide Temperature Range of -40°C to +70°C, Stable Power Supply in All Climates
Some lithium batteries may experience sudden voltage drops, power outages, or equipment malfunctions in high- or low-temperature environments. The Power Glory CR123A is designed for operating conditions ranging from -40°C to +70°C. Whether in outdoor cabinets during northern winters, enclosed meter boxes in southern summers, open-air highway equipment, or field monitoring terminals, it maintains stable voltage output, reduces the risk of voltage lag and sudden power outages, and ensures stable equipment operation across a wide temperature range.
III. Key Product Specifications
The Power Glory CR123A is available in two versions—Standard and High-Capacity—to accommodate industrial equipment with varying power consumption and battery life requirements. It features precise specifications, stable performance, and strong consistency across batches.
Parameter | CR123A Standard Type | CR123A High-Capacity Type | Remarks |
Nominal Voltage | 3.0V | 3.0V | Lithium-Manganese Dioxide (Li/MnO2) System |
Nominal Capacity | 1500mAh | 1700mAh | — |
Max. Continuous Current | 1500mA | 1500mA | — |
Max. Pulse Current | 3000mA | 3000mA | — |
Product Dimensions | Φ 17.0 × 34.5mm | Φ 17.0 × 34.5mm | — |
Operating Temperature | -40°C ~ +70°C | -40°C ~ +70°C | All-weather conditions |
Product Weight | Approx. 16.0g | Approx. 16.0g | — |
Annual Self-Discharge Rate | ≤ 2% | ≤ 2% | Room temperature conditions |
Specific Energy | 280Wh/kg | 280Wh/kg | — |
Power Glory relies on its proprietary material formulations and smart manufacturing processes, incorporating a unique sealing structure and leak-proof design. Its products are certified to IATF 16949, ISO 9001/14001/45001/50001, QC080000 (IECQ-HSPM), UL (MH29853), CE, UN38.3, IEC, and RoHS. By minimizing the risk of leakage at the source, these products safeguard the motherboards of industrial equipment.
IV. Comprehensive Application Across All Scenarios, Suitable for Harsh Industrial Conditions in Multiple Fields
Leveraging core capabilities such as high capacity, high pulse current, low self-discharge, and stability across the full temperature range, the Power Glory CR123A has become one of the long-lasting power supply solutions for critical equipment across multiple industries, suitable for most smart devices requiring low power consumption, long standby times, and high reliability.

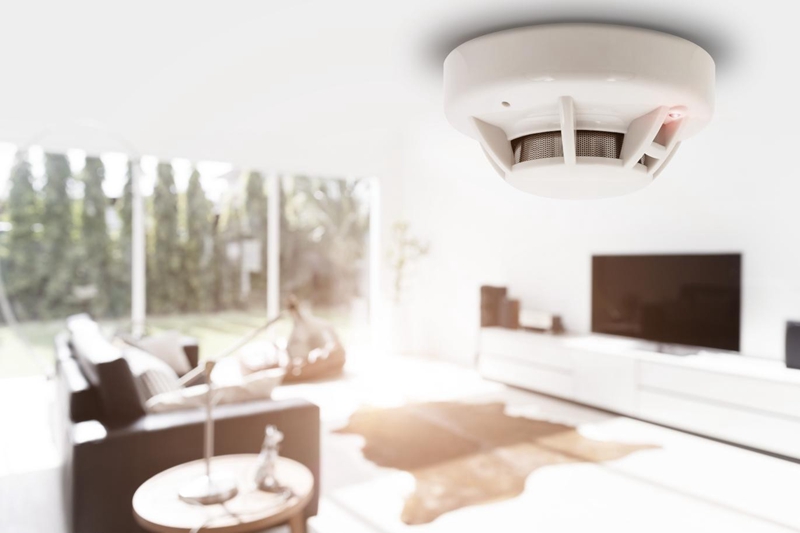

1. Smart Security Devices
Compatible with smoke alarms, carbon monoxide detectors, burglar alarms, and access control systems. The core requirement for security devices is 24/7 uninterrupted operation; the battery’s low self-discharge rate enables maintenance-free operation for several years, while the 3,000 mA pulse current can instantly power high-load functions such as audible and visual alarms and RF transmission, reducing the risk of device failure during sudden emergencies.

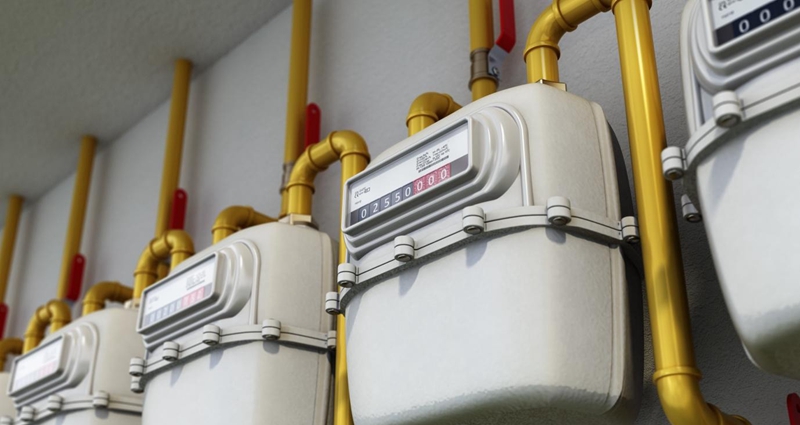

2. Smart Water/Gas/Electricity Meters
Compatible with remote-reading modules for smart electricity meters, water meters, and gas meters. Metering devices are often installed in utility vaults, within walls, or in open-air outdoor environments, where battery replacement is difficult and costly. The product’s stable output across a wide temperature range accommodates seasonal temperature fluctuations, ensuring continuous measurement accuracy and stable data transmission while reducing the risk of measurement errors and data disconnections caused by temperature variations.
3. Outdoor Positioning and Tracking Devices
Compatible with GPS positioning terminals, vehicle trackers, and outdoor asset tracking tags. These devices are deployed long-term outdoors or on moving vehicles, where climatic conditions are complex and variable. With high energy density and wide-temperature-range operation capabilities, they support precise round-the-clock positioning and periodic data uploads, adapting to complex operating conditions across multiple regions.
4. Emergency Lighting and Medical Emergency Equipment
Suitable for high-intensity emergency flashlights, LED emergency lighting, AEDs (automated external defibrillators), and similar devices. Emergency equipment is characterized by “long-term inactivity followed by sudden activation”; an annual self-discharge rate of less than 2% helps ensure reliable activation when it matters most.
Conclusion
From building security and utility metering to outdoor positioning and in-vehicle emergency systems, Power Glory’s CR123A batteries—with their long-lasting, maintenance-free operation, all-weather stability, low operational and maintenance costs, and industrial-grade safety—provide a reliable power foundation for critical smart devices in the era of the Internet of Things. These small cylindrical batteries not only ensure years of stable device operation but also embody Power Glory’s long-term commitment and unwavering dedication to quality, cultivated over more than two decades of specialization in the field of lithium micro-power sources.
