CP223830 3V 400mAh Ultra-Thin Primary Lithium Manganese Dioxide LiMnO2 Pouch Battery
- Omnergy
- China
- 15 days
- 750 million per year
Source the high-capacity CP223830 3V 400mAh ultra-thin primary lithium manganese battery LiMnO2. 2.3mm profile, ≤2% annual self-discharge rate. Optimized for active RFID, GPS asset tracking, and smart meters.
CP223830 3V 400mAh Ultra-Thin Primary Lithium Manganese Dioxide LiMnO2 Pouch Battery
2.3mm Slimline Profile. 400mAh High-Capacity Reservoir. 3.6g Lightweight Footprint for Flat IoT Engineering.
When developing advanced tracking hardware, wearable electronics, or secure access systems, vertical real estate is the primary bottleneck. Standard button cells add localized thickness, while cylindrical batteries introduce unacceptable bulk. The CP223830 3V 400mAh Ultra-Thin Primary Lithium Battery circumvents these layout limits by spreading a dense 400mAh power supply across a flat, 2.3mm geometry.
Weighing just 3.6g, this non-rechargeable soft-pack cell allows electronic designers to embed reliable, standalone 3V power directly into laminated card profiles, thin asset tags, and micro-instrument housings without compromising structural sleekness.
Technical Specifications of CP223830 3V 400mAh LiMnO2 Pouch Battery
| Industrial Engineering Parameter | Certified Value |
| Model Designation | CP223830 |
| Chemical Matrix | Lithium Manganese Dioxide LiMnO2, Primary |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 400mAh |
| Physical Dimensions | 2.3 mm (Thickness) × 39.0 mm (Width) × 30.0 mm (Height) |
| Net Weight | 3.6g |
| Annual Self-Discharge Rate | ≤ 2% per year (Stored at standard 20°C) |
| Operational Temperature Window | -40°C to +60°C |

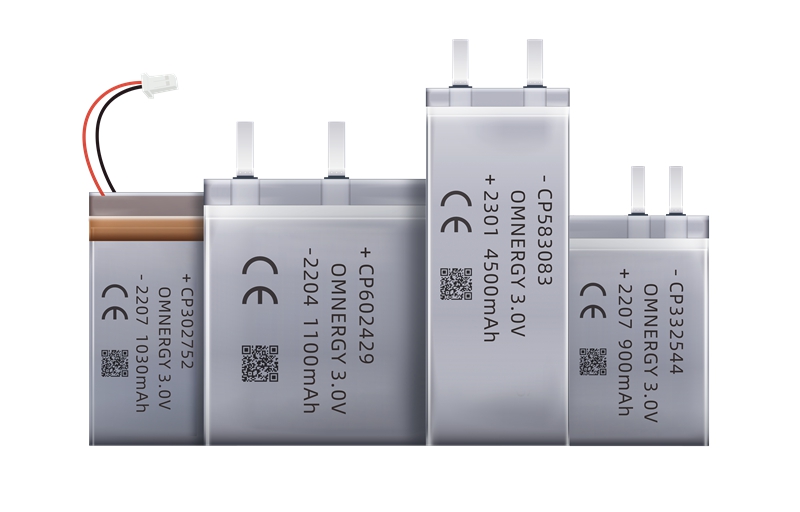

Full Rang of CP Lithium Manganese Pouch Batteries
| Model | Nominal Voltage | Nominal Capacity | Standard Current | Max Continuous Current | Max Pulse Current | Max Dimensions | The Electrode Structure | Weight Approx |
| (V) | (mAh) | (mA) | ( mA) | (mA) | (mm) | (g) | ||
| CP073040 | 3 | 90 | 1 | 15 | 30 | 0.7*30*41 | Laminated | 1.3 |
| CP076045 | 3 | 230 | 2 | 100 | 150 | 0.7*60*45.5 | Laminated | 2.6 |
| CP102833 | 3 | 120 | 1 | 30 | 50 | 1.0*28.5*33.5 | Laminated | 1.2 |
| CP114752 | 3 | 540 | 1 | 100 | 200 | 1.15*47*52.5 | Laminated | 4.8 |
| CP155050 | 3 | 600 | 5 | 150 | 300 | 1.5*50*50 | Spiral | 6.5 |
| CP210619 | 3 | 25 | 0.25 | 3 | 8 | 2.1*6.5*19.5 | Laminated | 0.35 |
| CP223830 | 3 | 400 | 2 | 100 | 200 | 2.3*39*30 | Spiral | 3.6 |
| CP224147 | 3 | 900 | 1 | 500 | 1000 | 2.2*45.5*48 | Spiral | 7.5 |
| CP224642 | 3 | 920 | 2 | 50 | 90 | 2.2*46*42 | Laminated | 8.5 |
| CP301330 | 3 | 200 | 5 | 50 | 100 | 3.0*13.5*30.5 | Spiral | 2 |
| CP302752 | 3 | 950 | 5 | 300 | 500 | 3.0*27*52 | Spiral | 7.5 |
| CP302775 | 3 | 1450 | 5 | 300 | 500 | 3.0*27*75 | Spiral | 10.5 |
| CP303555 | 3 | 1350 | 5 | 500 | 1000 | 3.0*35*55 | Spiral | 10.5 |
| CP305050 | 3 | 1800 | 5 | 800 | 1200 | 3.1*50*51 | Spiral | 13.8 |
| CP332544 | 3 | 750 | 5 | 150 | 300 | 3.3*25*44 | Spiral | 6 |
| CP383047 | 3 | 1300 | 5 | 400 | 800 | 3.9*30*47 | Spiral | 9.5 |
| CP403555 | 3 | 1600 | 5 | 400 | 800 | 4.0*35*55 | Spiral | 12 |
| CP431520 | 3 | 220 | 5 | 200 | 300 | 4.3*15*20 | Spiral | 2 |
| CP451728 | 3 | 400 | 10 | 100 | 200 | 4.5*16.8*28.5 | Spiral | 3.5 |
| CP501728 | 3 | 450 | 10 | 100 | 200 | 5.0*16.8*28.5 | Spiral | 3.8 |
| CP502025 | 3 | 500 | 2 | 100 | 200 | 5.1*20*25 | Spiral | 4.5 |
| CP502030 | 3 | 600 | 5 | 150 | 300 | 5.2*20.5*30.5 | Spiral | 5 |
| CP502425 | 3 | 600 | 5 | 150 | 300 | 5.2*25*26 | Spiral | 4.8 |
| CP502440 | 3 | 1200 | 5 | 300 | 500 | 5.0*24*40.5 | Spiral | 9 |
| CP502495 | 3 | 3200 | 5 | 800 | 1600 | 5.2*24.5*95.5 | Spiral | 23 |
| CP505050 | 3 | 3000 | 10 | 1000 | 3000 | 5.0*50*51 | Spiral | 24 |
| CP505060 | 3 | 4300 | 10 | 1500 | 3000 | 5.2*51*61 | Spiral | 30 |
| CP521728 | 3 | 500 | 10 | 100 | 200 | 5.2*16.5*28.5 | Spiral | 4 |
| CP551728 | 3 | 520 | 10 | 100 | 300 | 5.5*16.8*28.5 | Spiral | 4 |
| CP583083 | 3 | 4000 | 10 | 1000 | 2000 | 5.8*30*83 | Spiral | 27 |
| CP601822 | 3 | 450 | 5 | 200 | 300 | 6.0*18*22 | Spiral | 3.8 |
| CP601967 | 3 | 1800 | 1 | 300 | 500 | 6.0*19*65 | Spiral | 13.5 |
| CP602429 | 3 | 1100 | 2 | 16.5 | 50 | 6.0*24*28.5 | Laminated | 8 |
| CP602429 | 3 | 900 | 1 | 300 | 500 | 6.0*24*28.5 | Spiral | 7 |
| CP602446 | 3 | 1600 | 5 | 400 | 800 | 6.0*24*46 | Spiral | 12 |
| CP653235 | 3 | 1800 | 5 | 800 | 1200 | 6.7*32*35 | Spiral | 13 |
| CP702030 | 3 | 900 | 1 | 300 | 500 | 7.0*20*30 | Spiral | 7 |
| CP702440 | 3 | 1600 | 10 | 500 | 1000 | 7.2*24*41 | Spiral | 11.5 |
| CP702446 | 3 | 2000 | 5 | 500 | 1000 | 7.2*25*47 | Spiral | 13 |
| CP702528 | 3 | 1100 | 5 | 300 | 500 | 7.0*25.5*28.5 | Spiral | 8 |
| CP703235 | 3 | 1800 | 5 | 800 | 1200 | 7.0*32*35 | Spiral | 13.5 |
| CP723434 | 3 | 1950 | 5 | 1000 | 2500 | 7.2*34*34 | Spiral | 14 |
| CP903083 | 3 | 6400 | 10 | 1000 | 2000 | 9.2*30*83.5 | Spiral | 43.5 |
| CP905078 | 3 | 10000 | 10 | 3000 | 5000 | 9.0*50*78 | Spiral | 70 |
| CP1003850 | 3 | 5200 | 10 | 1000 | 2000 | 10.0*38*50 | Spiral | 35 |
| CP1004040 | 3 | 4300 | 5 | 1000 | 1500 | 10.2*40.5*40.5 | Spiral | 27 |
| CP1005050 | 3 | 7500 | 10 | 1000 | 1500 | 10.5*52.5*52.5 | Spiral | 50 |
Core Engineering Differentiators & B2B Value
1. High Capacity-to-Thickness Ratio (400mAh at 2.3mm)
While typical thin-film or layout-optimized cells sacrifice milliamp-hours to maintain low physical profile, the CP223830 offers a substantial 400mAh capacity. This provides an extended operational runtime for power-heavy cycles like cellular GPS handshakes or high-frequency sensor transmissions.
2. High-Performance Energy Retention (≤2% Self-Discharge)
Utilizing ultra-pure lithium foil chemistry paired with a highly stable organic electrolyte, internal chemical passivation restricts capacity loss to less than 2% annually. This shelf-life stability ensures your hardware remains operational even after long-term logistics storage or extended idle periods.
3. Flat, Dependable 3V Discharge Curve
Delivers a reliable voltage discharge plate close to 3.0V for the vast majority of its functional lifecycle. This flat discharge rate prevents digital processors from dropping during peak loads or throwing premature low-battery flags.
Targeted Industry Deployments
Hardware compliance managers and international procurement teams specify the CP223830 pouch cell across four dominant electronic verticals:
IoT, Logistics & Active Asset Tracking
GPS Tracking & Positioning Systems: Supplying concentrated, flat autonomous power for fleet logistics tags, high-value asset stickers, and container tracking modules.
Active RFID Tags: Powering automated long-range toll collection systems, supply chain transceivers, and real-time inventory location grids.
Wireless Remote Controls: Energizing low-profile secure facility controllers, industrial automation fobs, and complex handheld remote arrays.
Financial Technology & Secure Access Control
Smart Bank Cards: Integrates into next-generation high-security credit, debit, or cold-storage cryptocurrency hardware cards utilizing dynamic CVV displays or onboard biometric verification.
Advanced Medical Tech & Portable Instrumentation
Medical Machinery & Patches: Supplying reliable energy loops to wearable clinical patches, flexible smart temperature sensors, and portable patient monitoring instrumentation.
Portable Smart Instrumentation: Powering handheld environmental measurement tools, portable gas sub-meters, and field diagnostics instruments.
Industrial Meter Power Supply: Serving as an autonomous internal power source for high-precision utility calculation meters.
Industrial Data Security & Safety Systems
Storage & Memory Backup Power: Acting as an independent energy reservoir for critical configuration logs, non-volatile SRAM files, and register tables on compressed mainboards.
Security Alarms: Supplying long-term power to ultra-slim window/door safety triggers, micro entry sensors, and wireless smart facility alerts.
Custom B2B Manufacturing & Wholesale Services
We align high-volume factory production with the rigorous quality standards required by international hardware assembly lines.
Dedicated Wholesale Operations: Operating as an established source manufacturer with over 22 years of specialized expertise in miniature lithium power solutions, we focus entirely on the B2B wholesale sector. Our Minimum Order Quantity (MOQ) ranges from 4,000 to 10,000 units per variant, depending on tab selections.
Custom Tab Engineering: Our automated production setup is capable of attaching customized nickel terminal layouts, pre-attached insulated micro-leads, or precise surface-mount tabs configured to your exact PCB footprint.
Industrial Quality Verification: 100% automated screening for open-circuit voltage (OCV), internal resistance, and structural seam integrity. All products are fully UL certified (UL1642), with select product variations carrying CE certification, alongside standard compliance across RoHS and UN38.3 shipping regulations.
Global Logistics Optimization: Shipped in specialized anti-static matrix trays optimized for automated pick-and-place lines. While we do not support single-piece dropshipping, we provide full labeling support and complete documentation for international cross-border wholesale clients, including volume distributors servicing Amazon fulfillment chains.
Frequently Asked Questions
Q1: Is the CP223830 battery pack rechargeable?
A: No. The CP223830 is a primary (single-use) lithium manganese dioxide battery. It cannot be safely recharged. Attempting to force current back into this cell will compromise the micro-pouch barrier layers, resulting in cell swelling, electrolyte leakage, or permanent structural damage to your device's PCB board.
Q2: What is the main structural advantage of using the CP223830 pouch cell over standard button cells?
A: To achieve 400mAh with button cells, engineers would need to wire multiple thick cells in parallel, creating massive vertical bulk and increasing contact point failure risks under vibration. The CP223830 provides a single, unified power source that keeps vertical thickness down to just 2.3mm, distributing power over a flat area optimized for slim enclosures.
Q3: How does the operational temperature window protect outdoor tracking hardware?
A: The wide operational window of -40°C to +60°C guarantees that when the CP223830 is integrated into external GPS tracking tags or industrial meters, it functions reliably through severe winter drops as well as the intense localized heat buildup found inside unventilated shipping containers or industrial equipment housings during peak summer.
