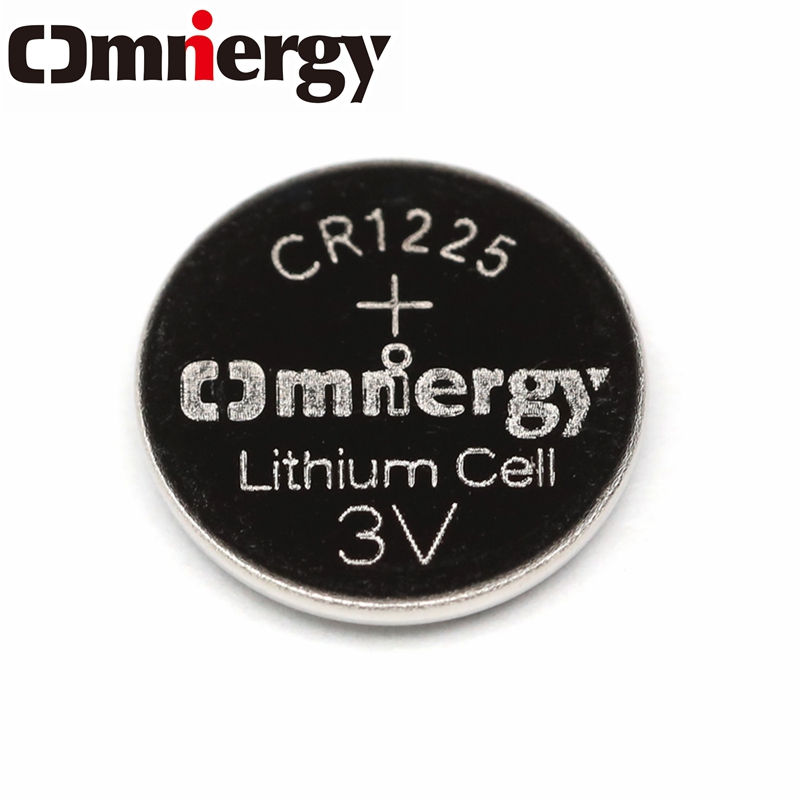

CR1225 3V 50mAh Lithium Battery
- Omnergy
- Yichang
- 7 days
- 750 million per year
High-capacity CR1225 3V 50mAh Li-MnO2 coin cell battery. Extreme reliability from -20°C to 70°C. Engineered for PLCs, security hubs, smart meters, and printers. Request a factory-direct quote.
CR1220 vs CR1225 Evolution: The Ultra-Dense CR1225 3V 50mAh Lithium Coin Cell for Industrial Automation, Telecom, and Enterprise Security
In the architecture of modern enterprise hardware, spatial efficiency is everything. When a standard 12mm cell lacks the longevity your circuit demands, the CR1225 3V 50mAh Lithium Manganese Dioxide (LiMnO2) Battery steps in.
Measuring a precise Φ12.5 × 2.5mm, this form factor capitalizes on a slight 0.5mm height increase over the CR1220 to deliver an incredible 30% boost in energy density (50mAh). It is the ultimate micro-power reservoir engineered specifically for high-availability industrial, communication, and security systems that require absolute operational autonomy.
Technical Specifications of CR1225 3V 50mAh Lithium Battery
| Technical Parameter | Specification |
| Battery Model | CR1225 |
| Chemical Composition | Lithium Manganese Dioxide (LiMnO2) |
| Nominal Voltage | 3.0V |
| Nominal Capacity | 50mAh |
| Dimensions | Diameter: 12.5mm *Height: 2.5mm |
| Standard Weight | 0.9g |
| Operating Temperature | -20°C to +70°C |
| Self-Discharge Rate | <2% per year (at room temperature) |
Size of CR1225 Battery
Characteristics of Lithium Manganese Battery
Full CR Series Lithium-Manganese Button Cells
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Nominal Current (mA) | Maximum Continuous Current (mA) | Maximum Pluse Current (mA) | Max Dimension (mm) | Weight (g) |
| CR920 | 3 | 20 | 0.1 | 1 | 5 | Φ9.5X2.0 | 0.55 |
| CR927 | 3 | 28 | 0.1 | 1 | 5 | Φ9.5X2.7 | 0.6 |
| CR1025 | 3 | 30 | 0.1 | 2 | 5 | Φ10.0X2.5 | 0.7 |
| CR1216 | 3 | 25 | 0.1 | 2 | 5 | Φ12.5X1.6 | 0.7 |
| CR1220 | 3 | 38 | 0.1 | 2 | 5 | Φ12.5X2.0 | 0.8 |
| CR1225 | 3 | 50 | 0.1 | 2 | 5 | Φ12.5X2.5 | 0.9 |
| CR1616 | 3 | 50 | 0.1 | 3 | 8 | Φ16.0X16 | 1.2 |
| CR1620 | 3 | 70 | 0.1 | 3 | 8 | Φ16.0X2.0 | 1.3 |
| CR1632 | 3 | 120 | 0.2 | 3 | 8 | Φ16.0X3.2 | 2 |
| CR2016 | 3 | 80 | 0.1 | 5 | 15 | Φ20.0X1.6 | 2 |
| CR2025 | 3 | 150 | 0.2 | 5 | 15 | Φ20.0X2.5 | 2.6 |
| CR2032 | 3 | 220 | 0.2 | 5 | 15 | Φ20.0X3.2 | 3.2 |
| CR2050 | 3 | 330 | 0.4 | 5 | 15 | Φ20.0X5.0 | 4.7 |
| CR2320 | 3 | 130 | 0.2 | 6 | 20 | Φ23.0X2.0 | 3 |
| CR2325 | 3 | 190 | 0.2 | 6 | 20 | Φ23.0X2.5 | 3.3 |
| CR2330 | 3 | 260 | 0.2 | 6 | 20 | Φ23.0X3.0 | 4 |
| CR2335 | 3 | 300 | 0.2 | 6 | 20 | Φ23.0X3.5 | 4.3 |
| CR2354 | 3 | 560 | 0.4 | 6 | 25 | Φ23.0X5.4 | 6.9 |
| CR2430 | 3 | 270 | 0.2 | 7 | 25 | Φ24.5X3.0 | 4.5 |
| CR2450 | 3 | 600 | 0.4 | 7 | 25 | Φ24.5X5.0 | 6.8 |
| CR2477 | 3 | 1000 | 0.6 | 7 | 25 | Φ24.5X7.7 | 10.5 |
| CR3032 | 3 | 500 | 0.4 | 10 | 30 | Φ30.0X3.2 | 6.8 |
| CR3832 | 3 | 850 | 0.8 | 20 | 75 | Φ38.0X3.2 | 11 |
The CR1225 Advantage: Engineering Highlights
1. Enhanced 50mAh Payload for Extended Lifecycles
By expanding the internal vertical volume to 2.5mm, this cell holds a richer formulation of high-purity LiMnO2. For design engineers, this translates directly to fewer field maintenance cycles and a guaranteed 10+ year service life for passive backup applications.
2. High-Fidelity Voltage Stability under Pulse Loads
Equipped with low internal resistance, our CR1225 prevents "voltage dip" during sudden current spikes. When an enterprise printer or telecom hub runs a self-diagnostic or flashes wireless data packets, the voltage stays flat and reliable.
3. All-Weather Kinetic Engineering (-20°C to 70°C)
From unheated outdoor security arrays in sub-zero winters to hot, unventilated server racks and industrial printing floors, our proprietary organic electrolyte ensures chemical kinetics remain stable without cell swelling or capacity drop-offs.
Core B2B Application Landscapes
Industrial Control Systems & Robotics
Modern smart factories depend on non-volatile memory retention. Our CR1225 provides flawless power to:
PLCs and CNC Motherboards: Sustaining crucial system parameters, SRAM configurations, and Real-Time Clock (RTC) sync during unexpected main power failure.
Distributed IIoT Sensors: Powering high-vibration equipment health monitors.
Enterprise Security & Smart Access Control
When facility power grid safety is compromised, security systems must stand firm.
Commercial Access Hubs: Backing up authorization logs and biometric data arrays.
Intrusion Detection: Ensuring long-term power for smart glass-break sensors and motion perimeter alarms.
Network Architecture & Communications
In data transmittal hubs, timing synchronization errors equal system failure.
Telecom Base Stations: Backing up critical synchronization tracking chips.
Network Routers & Switchboards: Maintaining permanent BIOS and timekeeping configurations.
Advanced Printing Systems & Instrumentation
Industrial & Commercial Printers: Serving as the motherboard CMOS battery to maintain firmware preferences and counter stats.
Smart Utility Meters: Providing a decade-long power base for gas, water, and flow rate calibration data retention.
Premium B2B Supply Chain & Customization Capabilities
Global Certifications & Zero-Defect Manufacturing: Formulated and assembled under a rigorous ISO9001 and ISO14001 quality framework, our CR1225 cells carry full global credentials including UL1642, CE, RoHS, REACH, and UN38.3 compliance. They are guaranteed safe for high-speed automated assembly lines and worldwide logistics distribution.
Custom PCB Pin Configurations: Choose from vertical, horizontal, or surface-mount (SMT) tab welding precisely matched to your custom PCB layout drawings.
Automated Tray Packaging: Delivered in industrial anti-static blister trays, ready for seamless pick-and-place manufacturing.
Frequently Asked Questions
Are CR1220 and CR1225 batteries interchangeable?
They share the same diameter of 12.5mm and nominal voltage of 3V. However, the CR1225 is 2.5mm thick, whereas the CR1220 is 2.0mm thick. If your device's battery holder has the vertical clearance to accommodate the extra 0.5mm, the CR1225 is a superior upgrade because it provides 50mAh instead of 38mAh, extending your device's life by roughly 30%.
Why is the CR1225 preferred for industrial printer motherboards?
Industrial printers generate considerable heat and vibration during continuous operation. Our CR1225 features a rugged stainless-steel casing and an operating temperature ceiling of 70°C. This, paired with its 50mAh capacity, ensures the printer's internal memory and real-time clock remain intact for up to a decade without requiring maintenance.
What is the shelf life of your factory-direct CR1225 battery?
Thanks to our precision crimp-sealing tech and ultra-pure raw materials, the self-discharge rate is kept below 2% per year under standard storage conditions. This yields an optimal shelf life of 10 years from the date of manufacture.
Upgrade Your Device Longevity. Request an Evaluation Batch.
Eliminate field battery failures and enhance your product’s market value with our heavy-duty CR1225 batteries. Contact our engineering division today for comprehensive data sheets, STEP files, and tiered bulk pricing.
